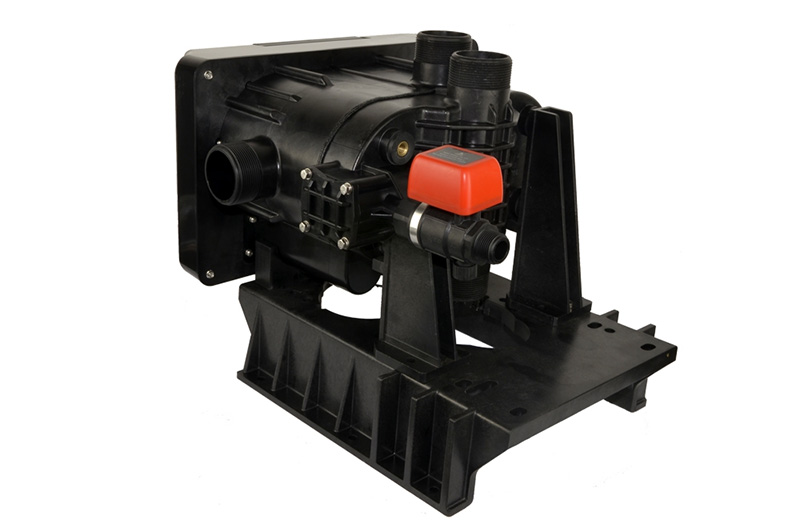

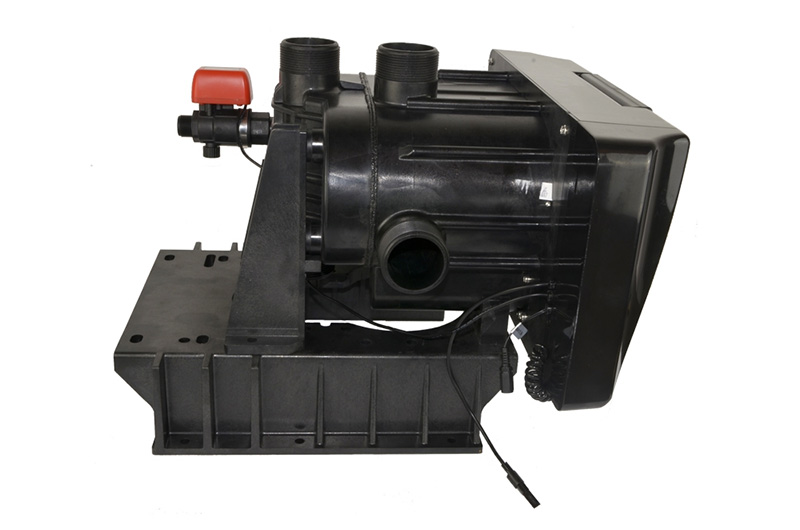

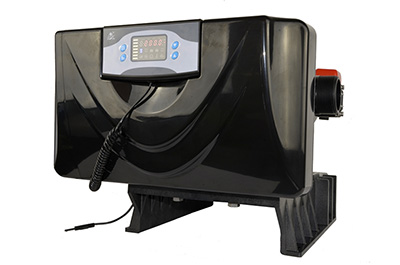

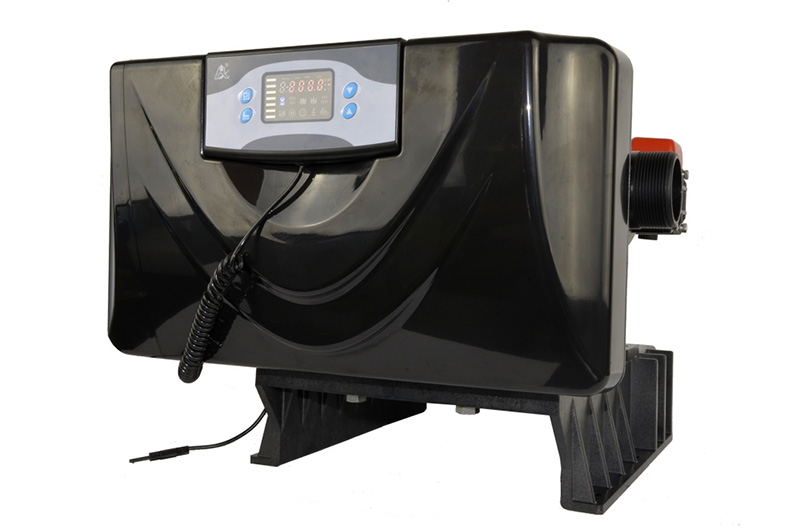

F95A Automatic Multiport Softener Valves
Featuring a flow rate of 20m³/h, the F95A1/A3 automatic multiport softener valve is equipped with two valve cores, one controlling the inflow of the water, the other responsible for outflow. The different functions such as service, backwash, brine and slow rinse, brine refill and fast rinse can be realized through parameter modifications.
| Model | F95A1/A3（63520/63620） |
| Inlet/outlet | 2"M |
| Drain | 1.5"M |
| Brine line connector | 3/4"M |
| Mounting base | Side mount，top and bottom distributor basket 2"M |
| Riser pipe | Side mount， top and bottom distributor basket 2"M |
| Flow rate | 20m³/h |
| Filter tank | 28"--40" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Ambient temperature | 5℃--50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100-240V/50-60Hz Output DC24V, 1.5A |
Notes:F95A1 is time clock type, F95A3 is meter type.
