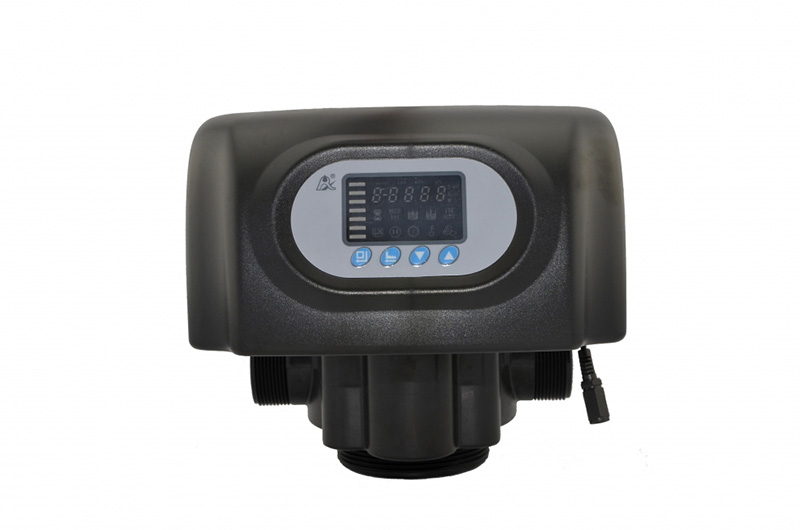

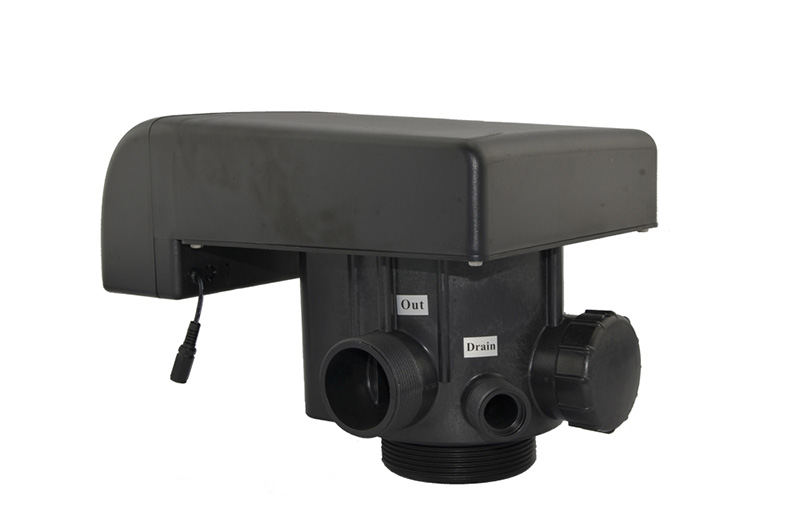

N74A Automatic Multiport Softener Valves
Featuring a flow rate of 10m³/h, the N74A automatic multiport softener valve can realize different functions such as service, backwash, brine and slow rinse, brine refill and fast rinse through various parameter modifications.
| Model | N74A1/A3（63510/63610） |
| Inlet/outlet | 2"M |
| Drain | 1"M |
| Brine line connector | 1/2"M |
| Mounting base | 4" -8UN |
| Riser pipe | 1.5" D-GB |
| Flow rate | 10m³/h |
| Filter tank | 16"--30" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Ambient temperature | 5℃~50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/1.5A |
