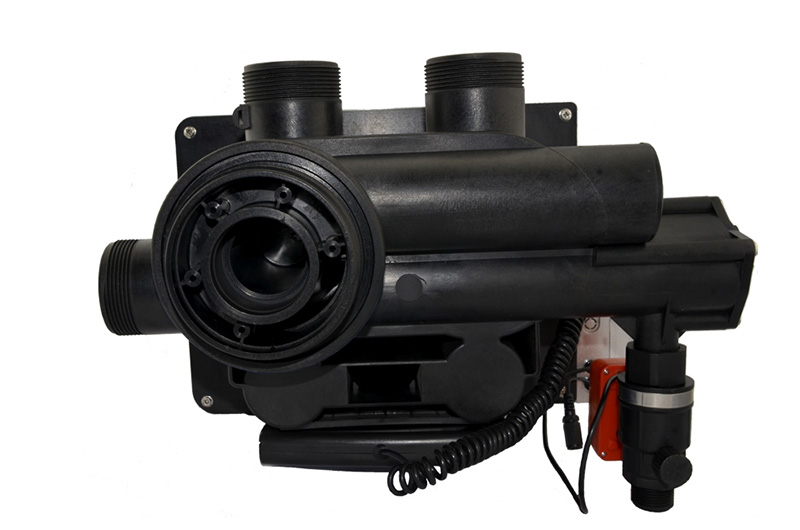

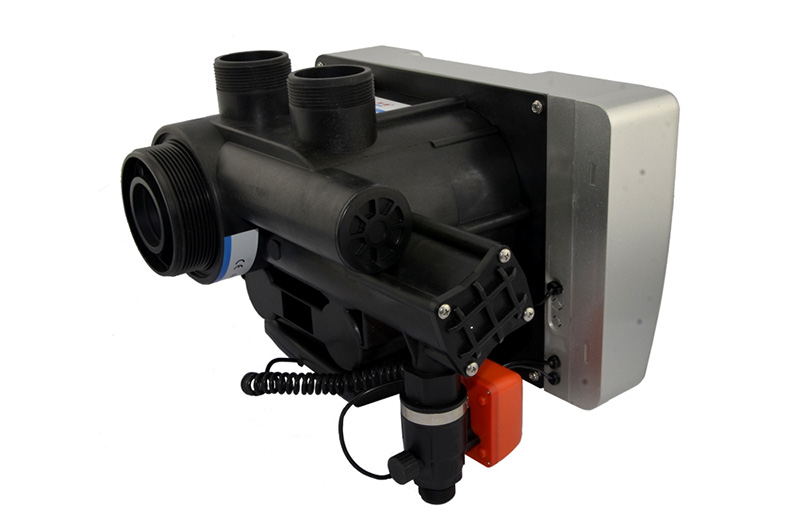

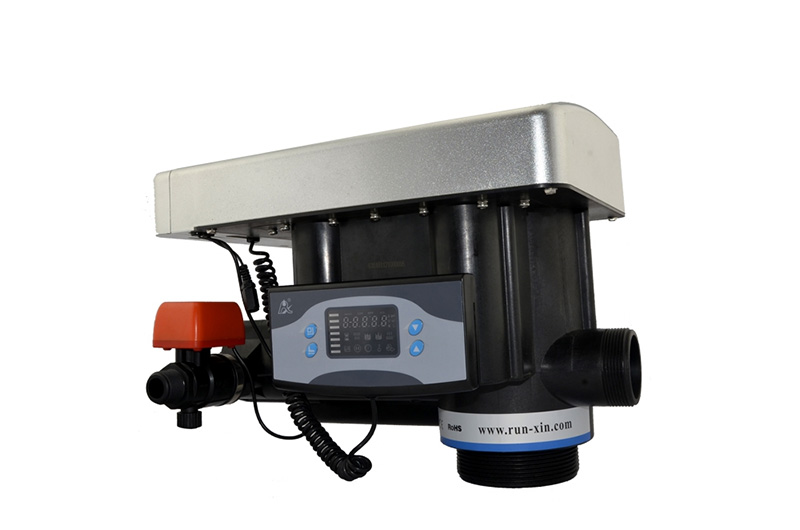

N77 Automatic Multiport Softener Valves
Allowing a flow rate of 18m³/h, the N77A automatic multiport softener valve features a planar and corrosion resistant gasket for opening and closing. It is equipped with two valve cores, one controlling the inflow of the water and brine, the other controlling outflow and drainage. The N77A1 is a timer clock type while the N77A3 is meter type.
| Model | N77A1/A3（63518/63618） |
| Regeneration | Time clock type |
| Mount type | Top mount / side mount |
| Inlet/outlet | 2"M |
| Drain | 1.5"M |
| Brine line connector | 3/4"M |
| Mounting base | 4" -8UN |
| Riser pipe | 1.5" D-GB |
| Flow rate | 18m³/h |
| Filter tank | 24"--42" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/1.5A |
