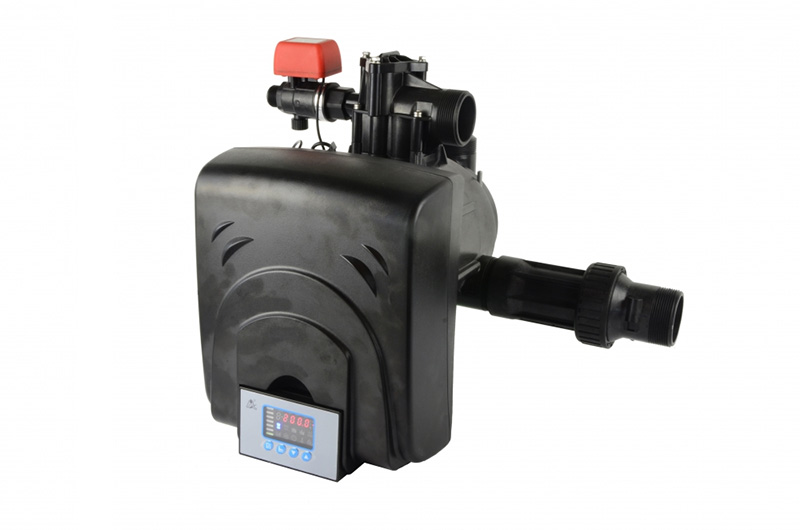

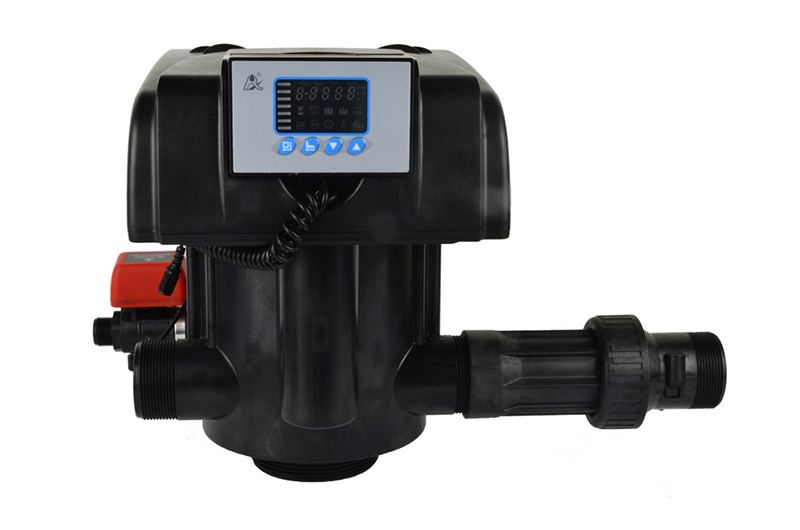

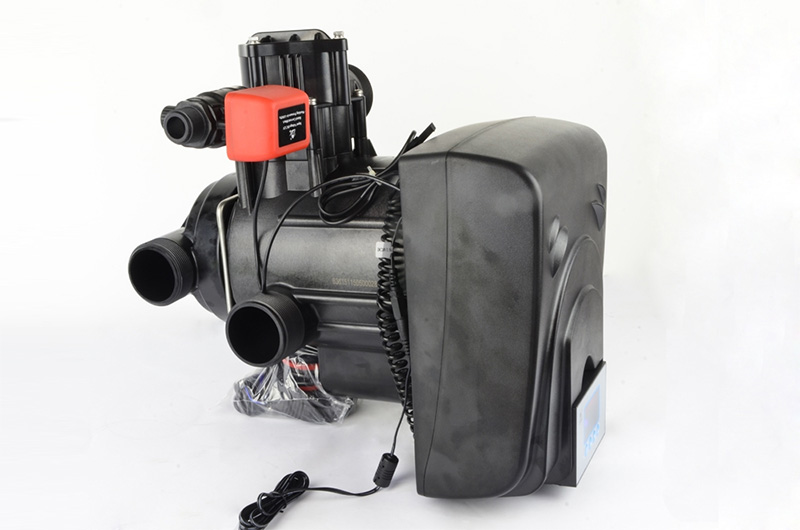

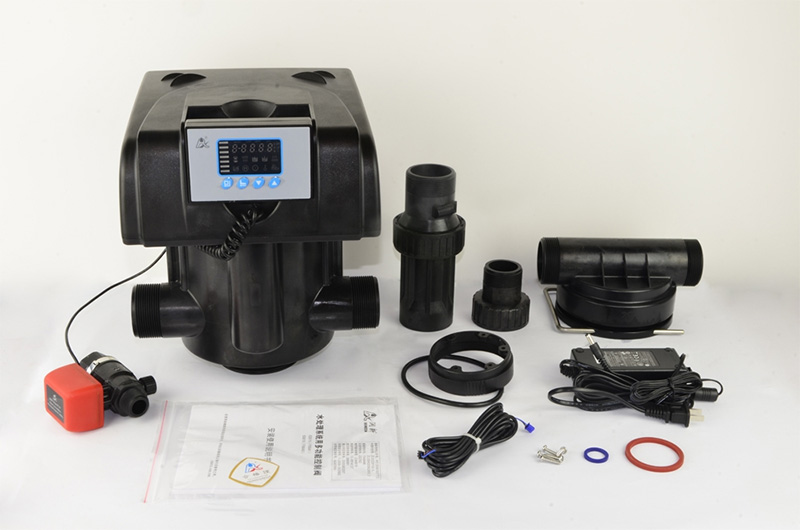

F99 Automatic Multiport Softener Valves
Featuring a flow rate of 15m³/h, the F99A1/A3 automatic multiport softener valve adopts a planar and corrosion resistant gasket for opening and closing. Different functions such as service, backwash, brine and slow rinse, brine refill and fast rinse can be realized through simple parameter modifications. The F99A1 is a timer clock type while F99A3 is a meter type.
| Model | F99A1/A3（63515/63615） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount / side mount |
| Inlet/outlet | 2"M |
| Drain | 1.5"M |
| Brine line connector | 3/4"M |
| Mounting base | 4" -8UN |
| Riser pipe | 1.5"D-GB |
| Flow rate | 15m³/h |
| Filter tank | 30"--40" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/1.5A |
