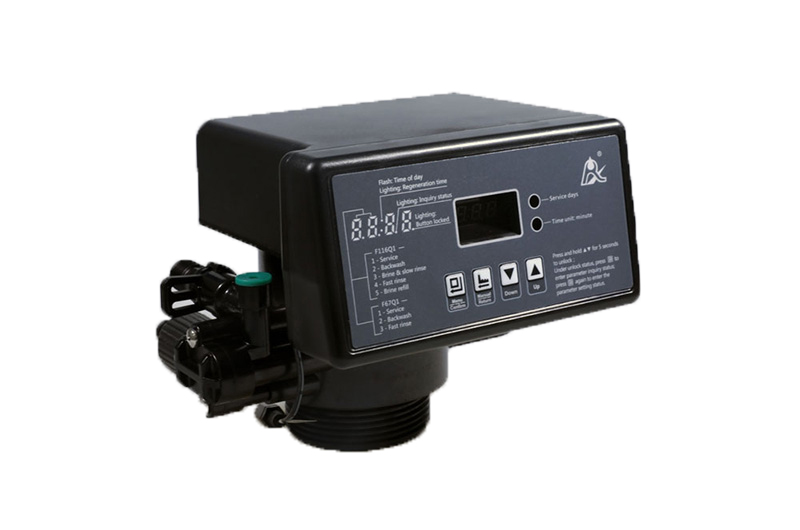

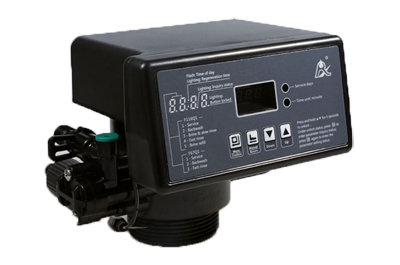

F116Q Automatic Multiport Softener Valves
Featuring a flow rate of 5m³/h, The F116Q automatic multiport softener valve adopts a planar and corrosion resistant gasket for opening and closing. The different functions such as service, backwash, brine and slow rinse, brine refill and fast rinse can be realized through parameters modification. The F116Q1 is a timer clock type while F116Q3 is a meter type.
| Model | F116Q1/ Q3（65505/65605） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 1" M |
| Drain | 3/4" NPT |
| Brine tank connector | 3/8" M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 5m³/h |
| Tank diameter range for filters | 10"-20" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
