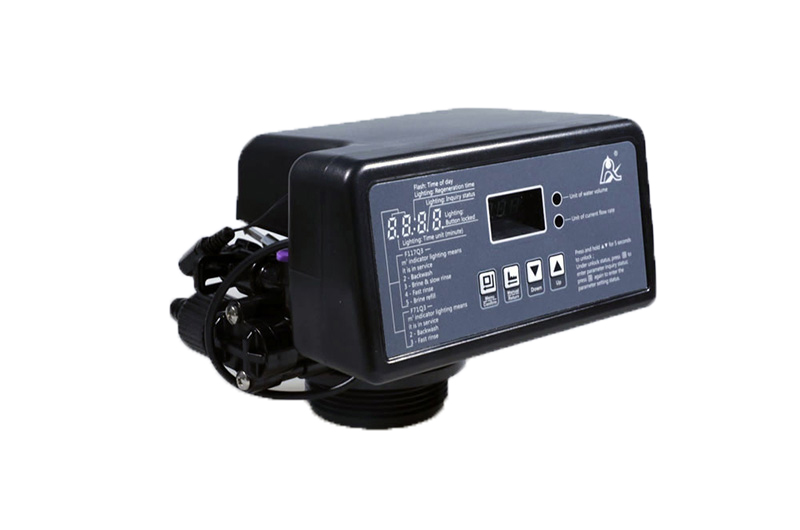

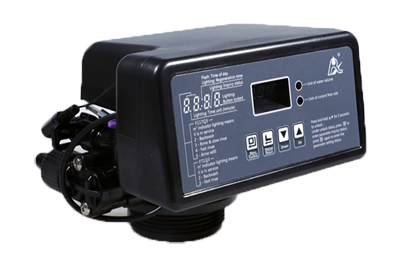

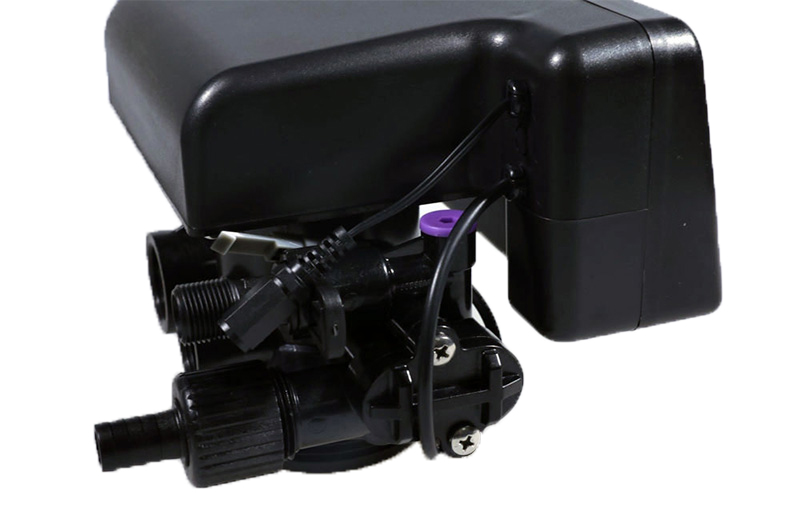

F117Q Automatic Multiport Softener Valves
Featuring a flow rate of 3m³/h, the F117Q1/Q3 automatic multiport softener valve adopts a planar and corrosion resistant gasket for opening and closing. The different functions such as service, backwash, brine and slow rinse, brine refill and fast rinse can be realized through parameters modification. The F117Q1 is a timer clock type while F117 Q3 is a meter type.
| Model | F117Q1/Q3（65503/65603） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 3/4" F |
| Drain | 3/4" M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 3m³/h |
| Filter tank | 6"--12" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
