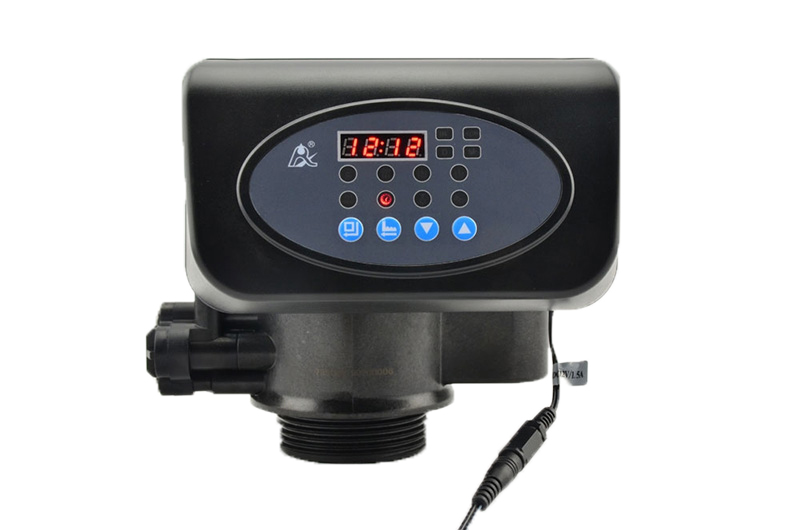

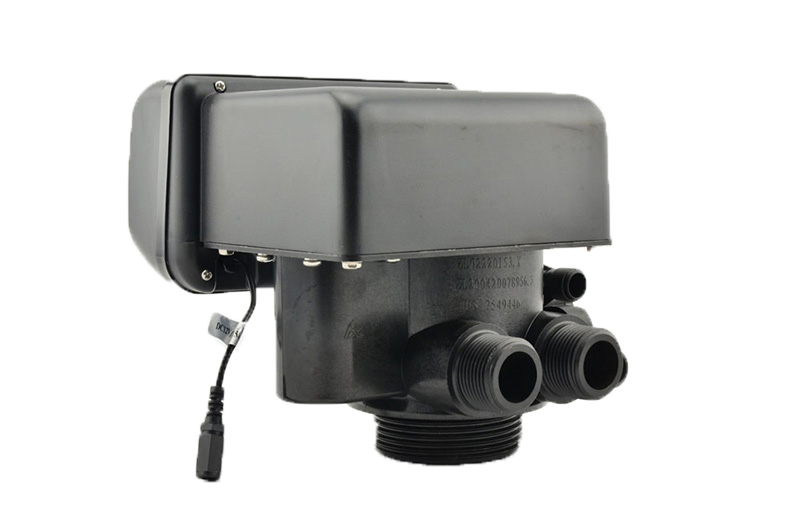

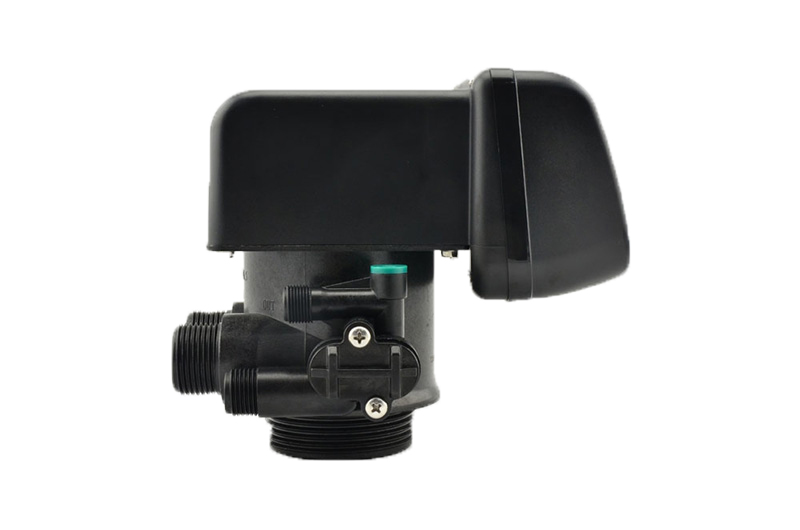

F68P Automatic Multiport Softener Valves
The F68P automatic multiport softener valve features a flow rate of 4m³/h. It adopts a planar and corrosion resistant gasket for opening and closing. The different functions such as service, backwash, brine and slow rinse, brine refill and fast rinse can be achieved through parameter modification. The F68P1 is a timer clock type while F68P3 is a meter type.
| Model | F68P1/P3（74504/74604） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 1"M |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--18" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | Up-flow regeneration＜2FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Ion exchange equipment, water treatment system, undefinedRO pretreatment system |
