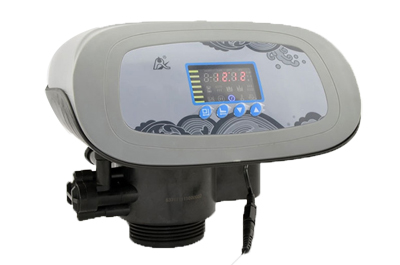

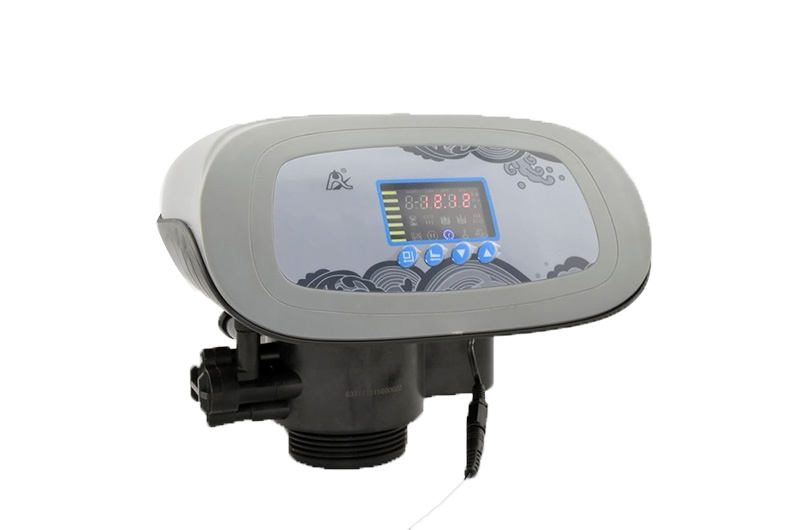

F63G Automatic Multiport Softener Valves
The F63G automatic multiport softener valves features a flow rate of 4m³/h. It has a planar and corrosion resistant gasket for opening and closing. Backwash, service, brine and slow rinse, brine refill, and fast rinse functions can be realized using this valve. The F63G1 is a timer clock type while F63G3 is a meter type.
| Model | F63G1/G3（62504B/62604B） |
| Regeneration | Time clock type / meter type |
| Inlet/outlet | 1"M |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--18" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Ambient temperature | 5-50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
