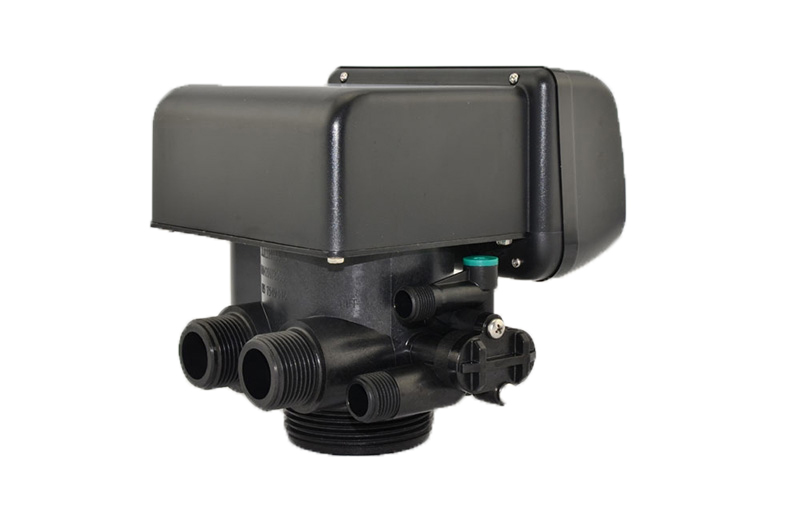

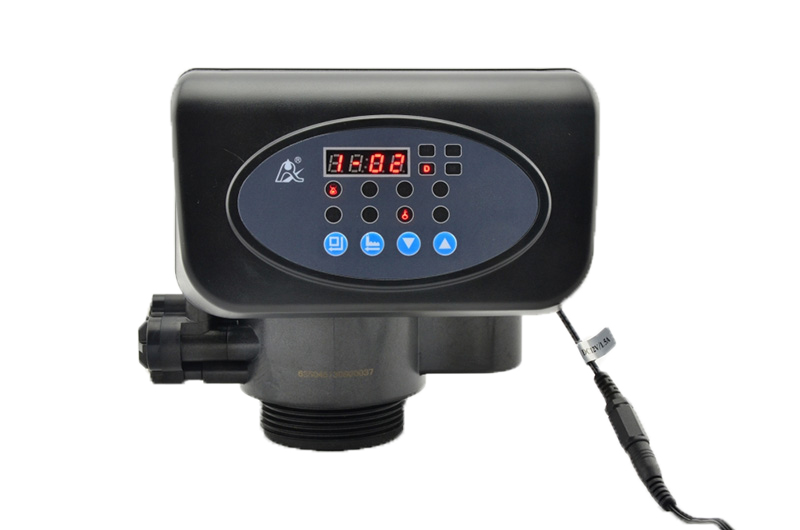

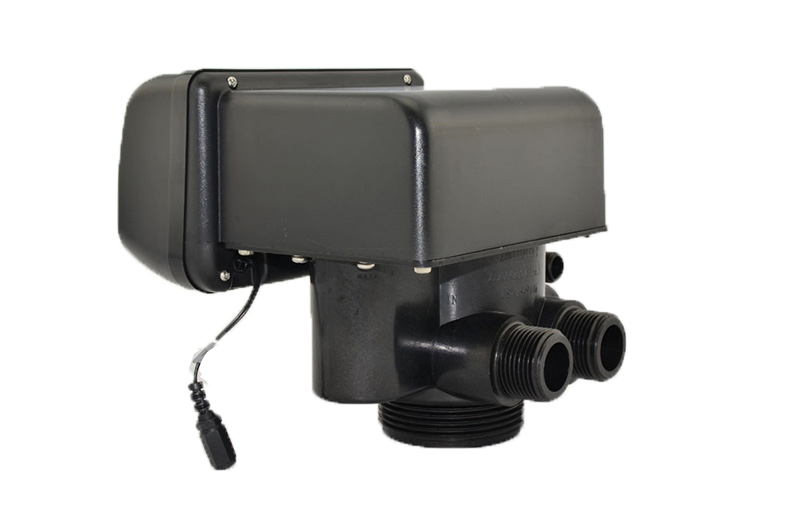

F63P Automatic Multiport Softener Valves
This simple meter type softener valve features a flow rate of 4m³/h. It adopts a planar and corrosion resistant gasket for opening and closing. Service, backwash, brine and slow rinse, brine refill, and fast rinse functions can be carried out with this valve. The F63P1 is a timer clock type while F63P3 is a meter type.
| Model | F63P1/P3（64504/64604） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 1"M |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--18" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Ion exchange equipment, water treatment system, undefinedRO pretreatment system |
