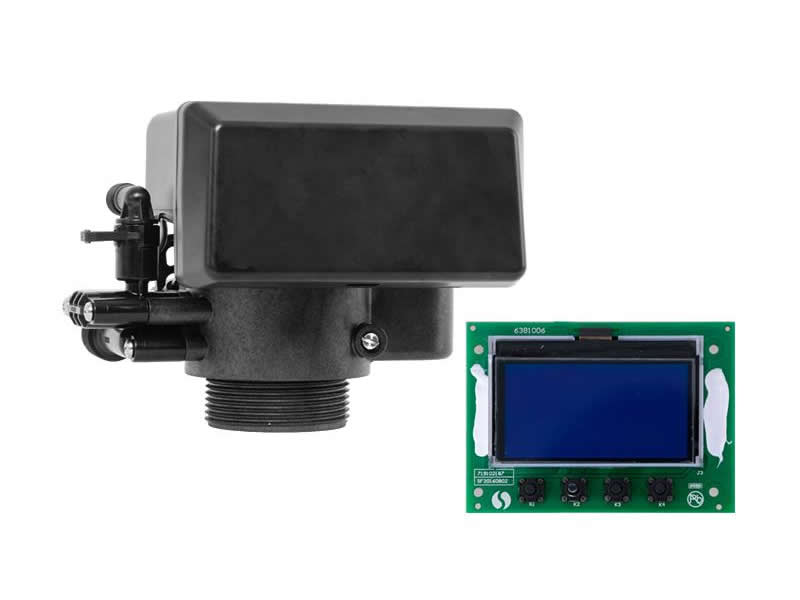

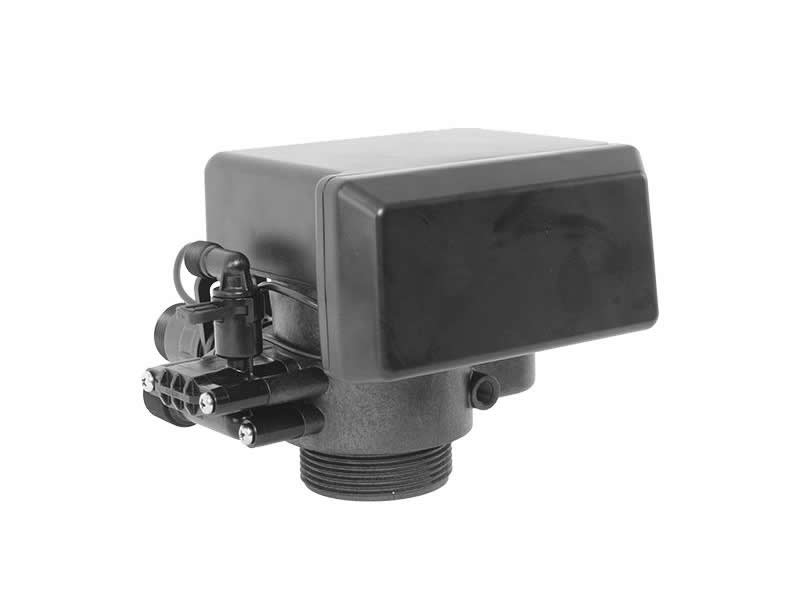

F136 Residential Water Softener Valves
F136 residential water softener valve adopts high flatness and corrosion resistant seal surfaces for closing and opening to ensure high sealing performance, and the flow rate can reach 3m³/h. The valve body is made of 20% glass fiber reinforced PPO material, providing an optimal performance.
- Down-flow regeneration and up-flow regeneration;
- Soft water refill for brine tank, using soft water to refill the brine tank improves the regeneration effect while provides a cleaner brine tank;
- Proportional brining, with hard water bypass function;
- WIFI remote control;
- Dry brine tank mode, vacation mode and brine shortage alarm function are available;
- Intelligent leak proofing;
| Model | F136 |
| Water Inlet/outlet | 1" M |
| Drain | 3/4" M |
| Brine line connector | 3/8" M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 3m³/h (0.1Mpa differential pressure) |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜2FTU |
| Ambient temperature | 5-50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
