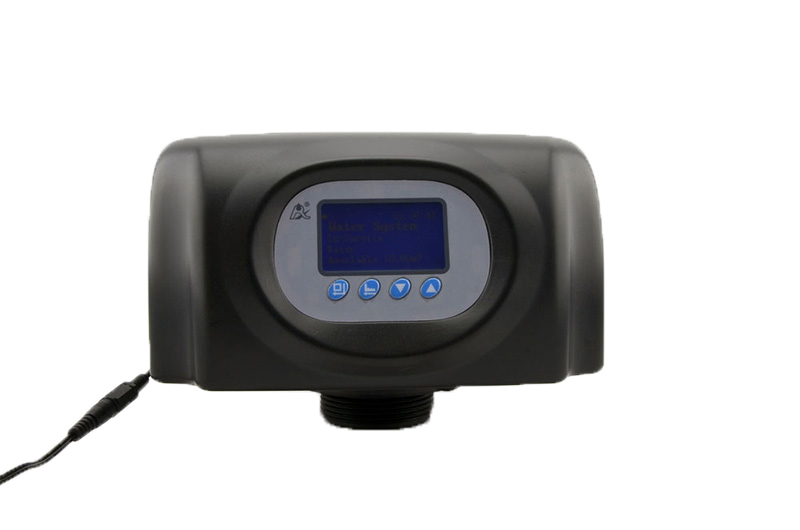

F82 Residential Water Softener Valves
With a flow rate of 4m³/h, the F82 residential water softener valve achieves different functions, including service, backwash, brine& slow rinse, brine refill and fast rinse through parameter modifications.

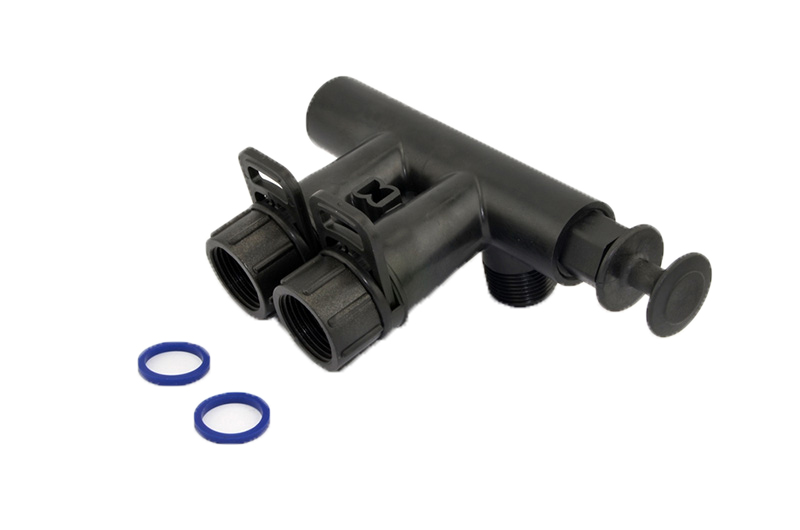

The water softener valve with screws can be paired with F70C bypass valve from Runxin to bypass fluid, so the flow of hard water is allowed during regeneration.
| Model | F82A-LCD/F70CL(82604/41204L), F82B-LCD/F70CL(82604B/41204L) |
| Inlet/outlet | 1"M |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--18" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU； Up-flow regeneration＜2FTU； Filtration＜20FTU |
| Ambient temperature | 5-50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
