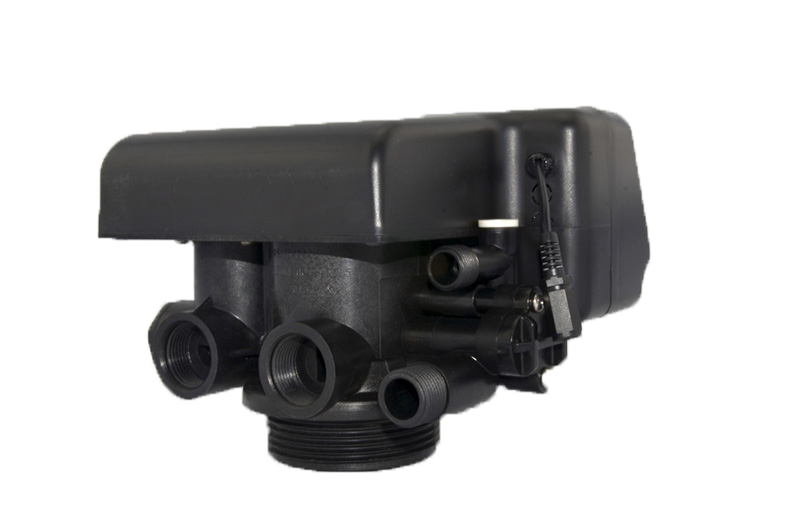

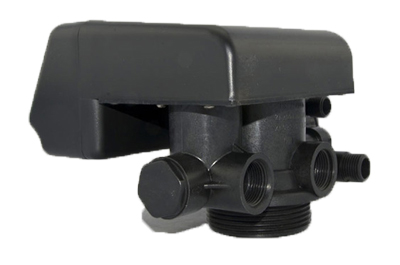

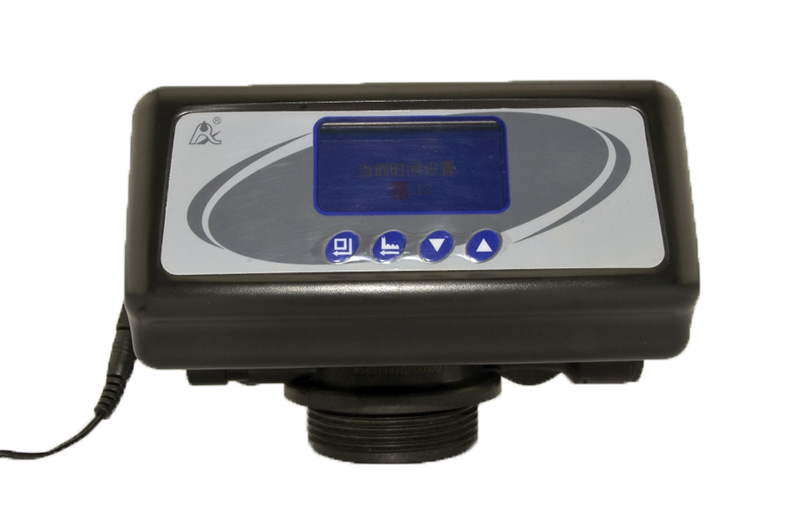

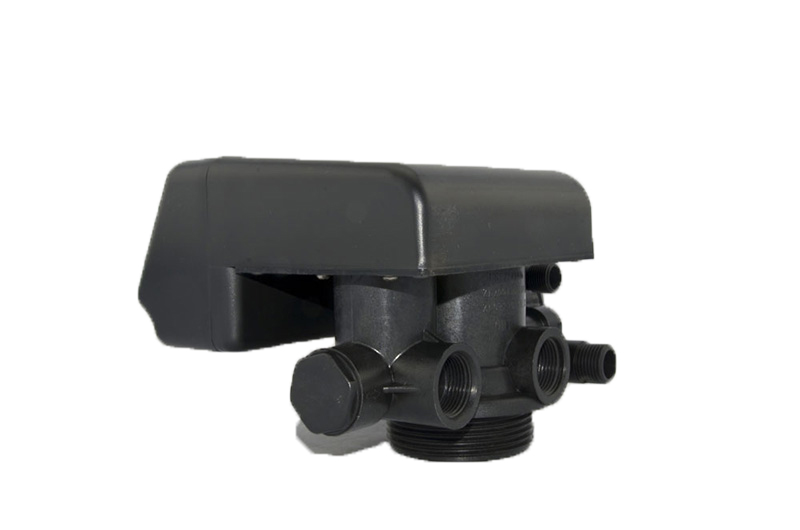

F65 Residential Water Softener Valves
Featuring a flow rate of 2m³/h, the F65D achieves different functions, including service, backwash, brine & slow rinse, brine refill and fast rinse through parameter modifications. The F65D1 is a timer clock valve while the F65D3 is a meter type.
| Model | F65D1/D3（62502/62602） |
| Regeneration | Time clock type / meter type |
| Inlet/outlet | 3/4"M |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 2m³/h |
| Filter tank | 6"--18" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜2FTU |
| Ambient temperature | 5-50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
