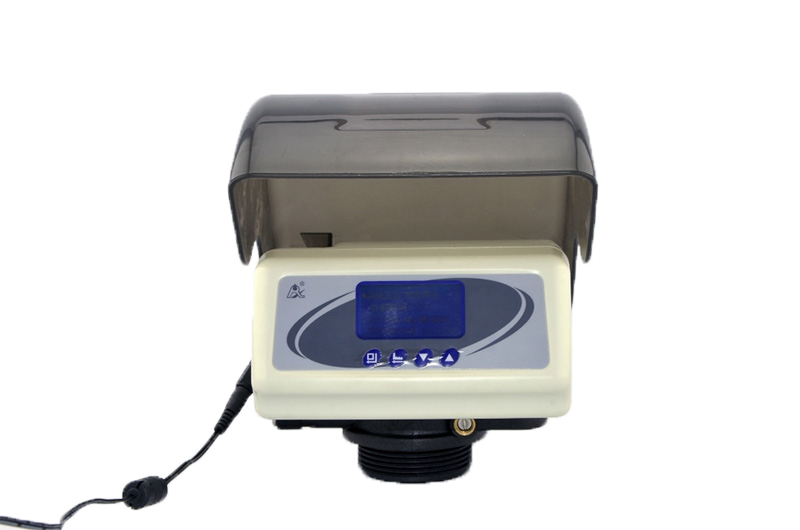

F79 Residential Water Softener Valves
Featuring a flow rate of 2m³/h, the F79 achieves different functions, including service, backwash, brine& slow rinse, brine refill and fast rinse through parameter modifications.

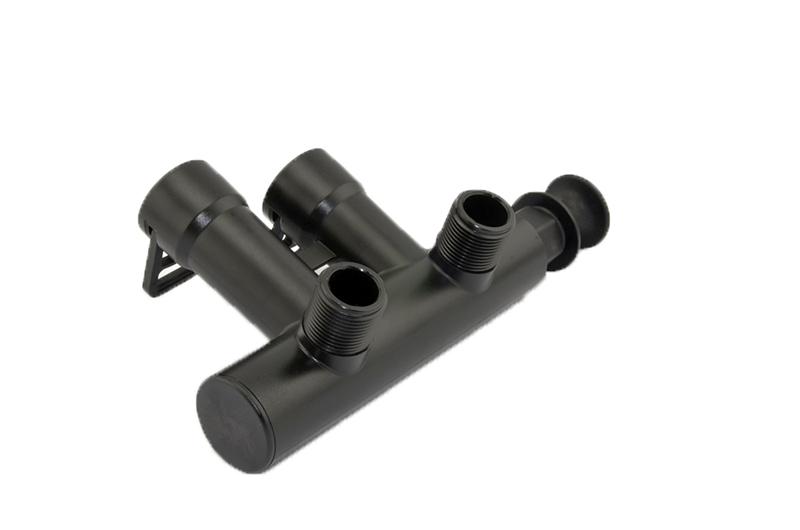

The F79 is a multifunctional softening valve, where up-flow regeneration, down-flow regeneration are all accomplished. The F79 is also furnished with an F70D bypass valve, allowing for original water passage during the regeneration process.
| Model | F79A-LCD/F70D(82602/41202), F79B-LCD/F70D(82602B/41202) |
| Inlet/outlet | 3/4"M |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 2m³/h |
| Filter tank | 6"--18" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU；Up-flow regeneration＜2FTU；Filtration＜20FTU |
| Ambient temperature | 5-50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
