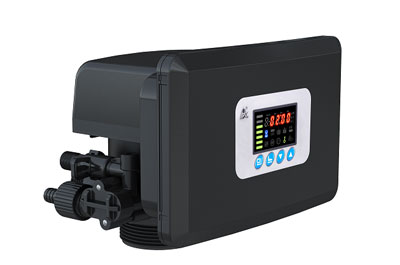

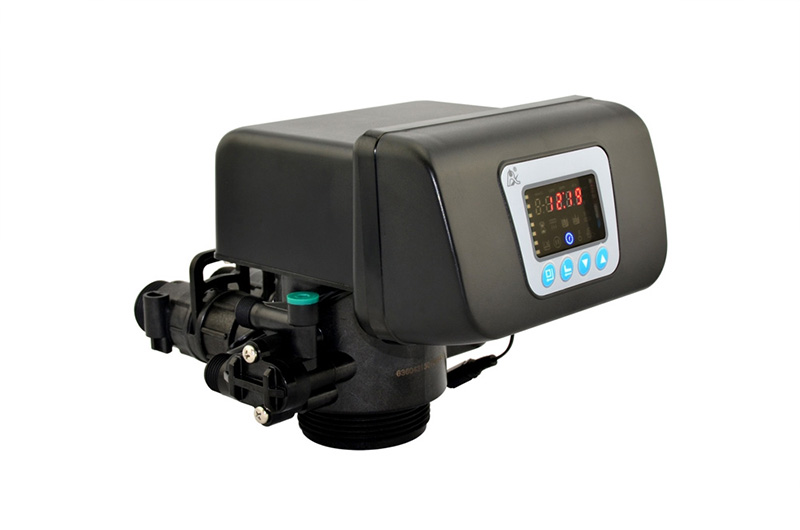

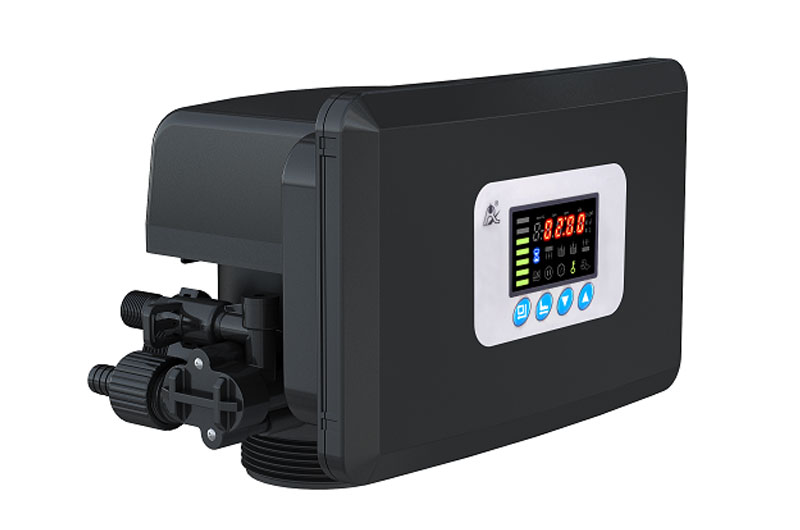

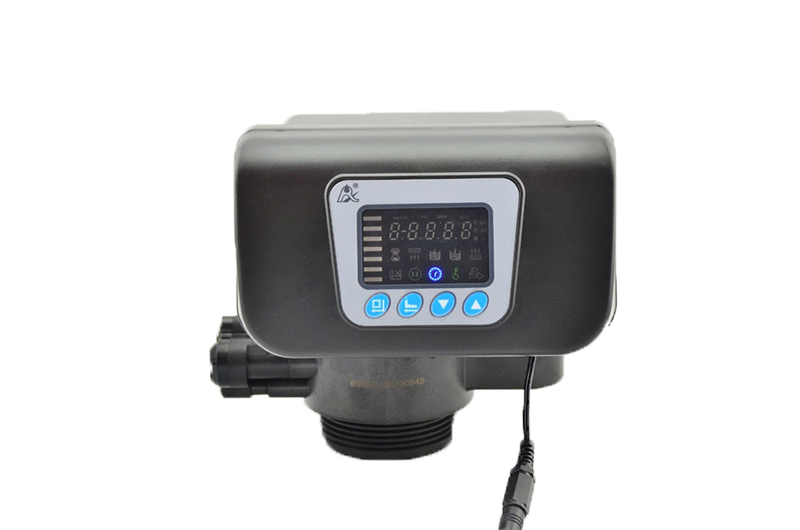

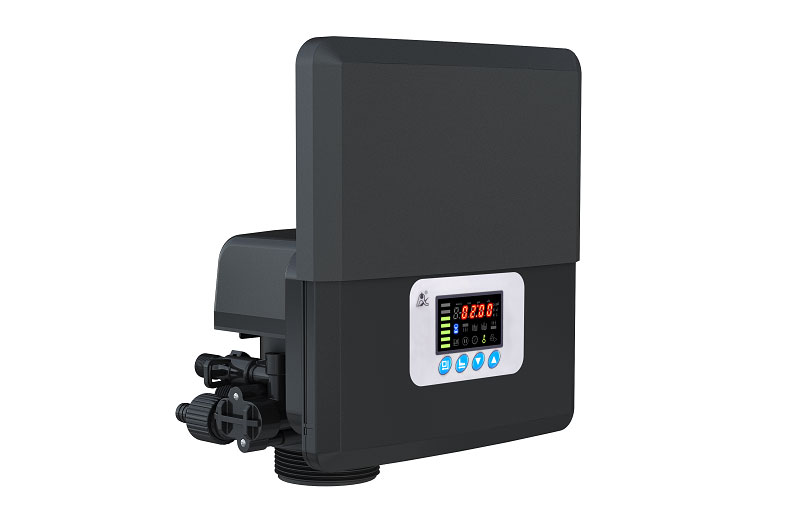

F116A Automatic Multiport Softener Valves
Featuring a flow rate of 5m³/h, the F116A automatic multiport softener valve is a meter type valve and adopts a planar and corrosion resistant gasket for opening and closing. The F116A1 is a timer clock type while the F116A3 is a meter type.
| Model | F116A1/A3（63505/63605） |
| Regeneration | Time clock type / meter type |
| Inlet/outlet | 1"M |
| Drain | 3/4"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5" -8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
