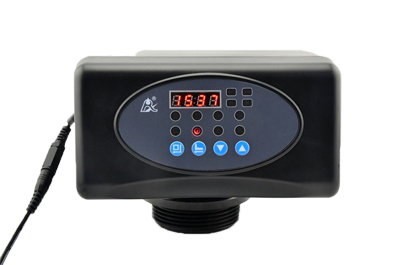

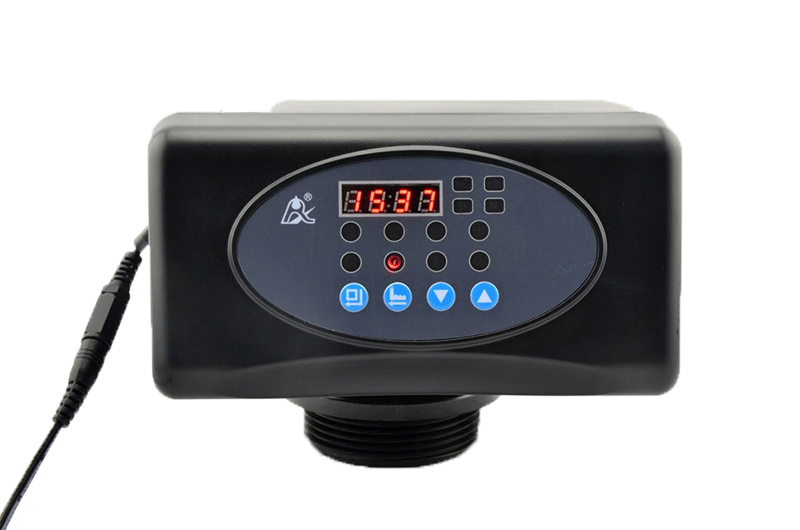

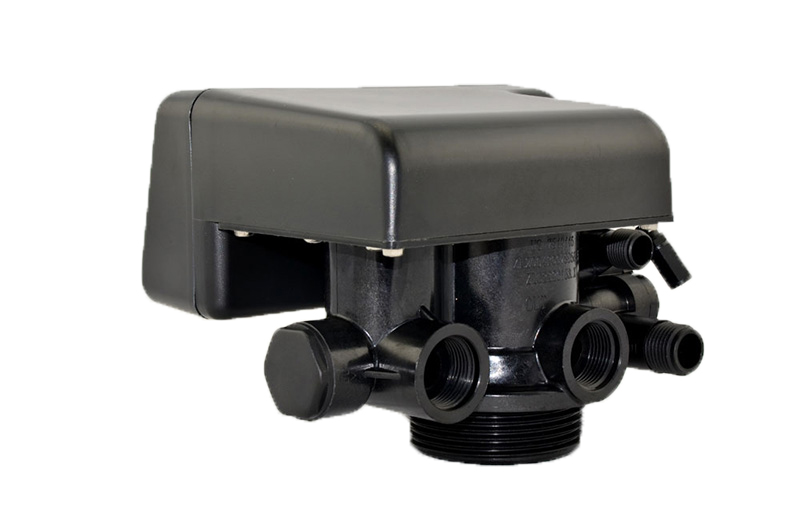

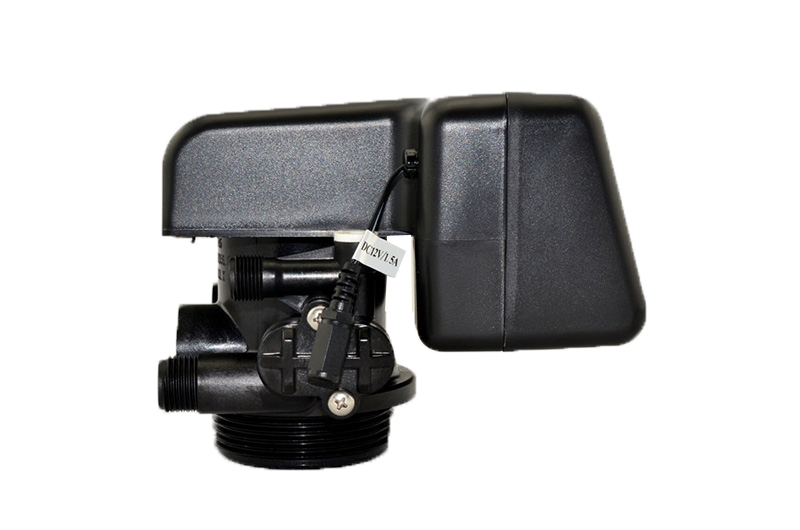

F65P Automatic Multiport Softener Valves
The flow rate of the F65P automatic multiport softener valve is 2m³/h. It is a simple softening valve that adopts a planar and corrosion resistant gasket for opening and closing. Service, backwash, brine and slow rinse, brine refill, and fast rinse functions can be realized through parameter modifications. The F65P1 is a timer clock type while F65P3 is a meter type.
| Model | F65P1/ P3（64602/64602） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 3/4"F |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 2m³/h |
| Filter tank | 6"--12" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Ion exchange equipment, water treatment system, RO pretreatment system |
