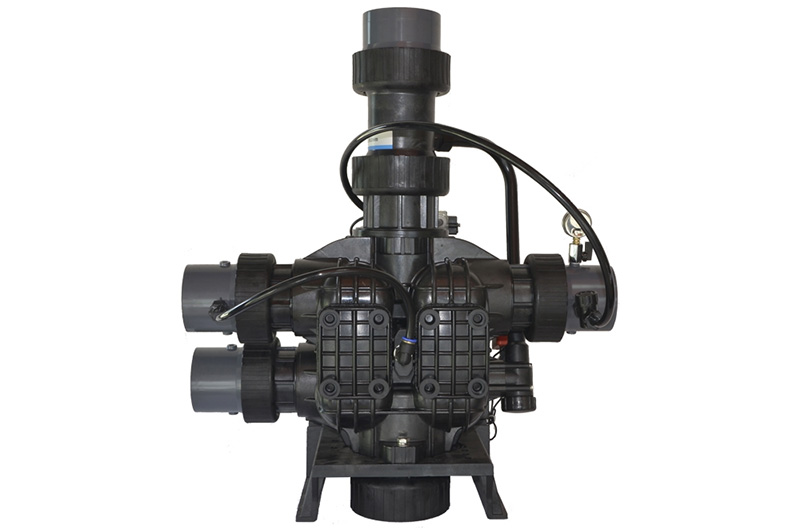

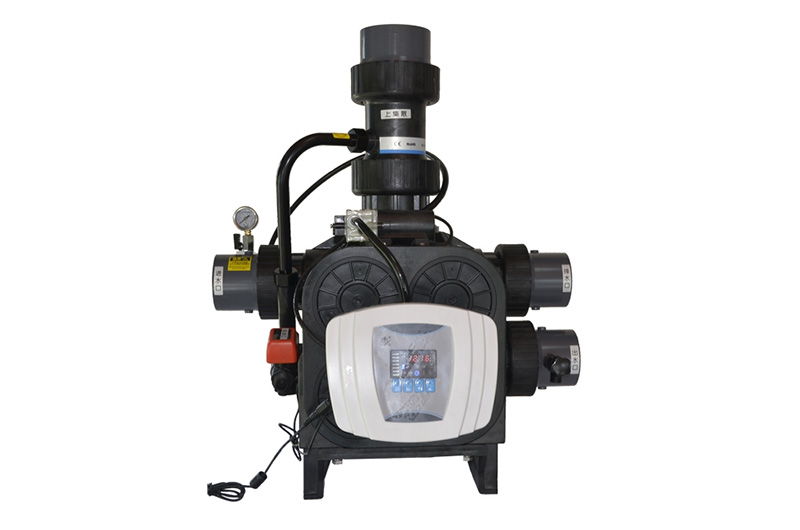

F96 Automatic Multiport Softener Valves

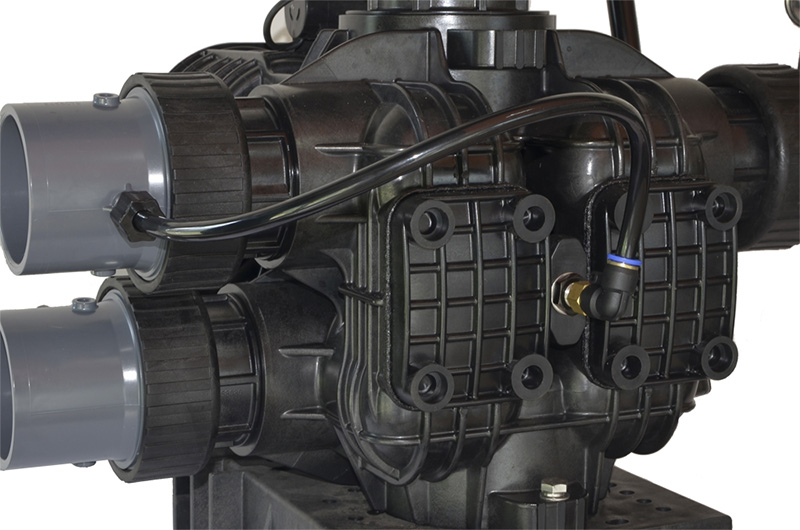

Featuring a flow rate of 50m³/h, the F96A1/A3 comes with 4 ports in a T-configuration in the valve body. The unfiltered water is brought in from pump port, which is sent to different passages for treatment. The different flow passages are easily controlled through pushing or pulling the hydraulically balanced pistons in the valve, realizing different functions such as backwash, brine and slow rinse, fast rinse and brine refill. The F96A1 is a timer clock type while the F96A3 is a meter type.
| Model | F96A1/A3（63550/63650） |
| Regeneration | Time clock type / meter type |
| Mount type | Side mount |
| Inlet/outlet | DN80 |
| Drain | DN80 |
| Brine line connector | 3/4" M |
| Mounting base | Side mount， Top and bottom distributor basket DN100 |
| Riser pipe | Side mount， Top and bottom distributor basket DN100 |
| Flow rate | 50m³/h |
| Filter tank | 48"--63" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/4A |
