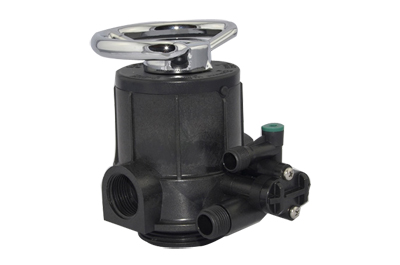

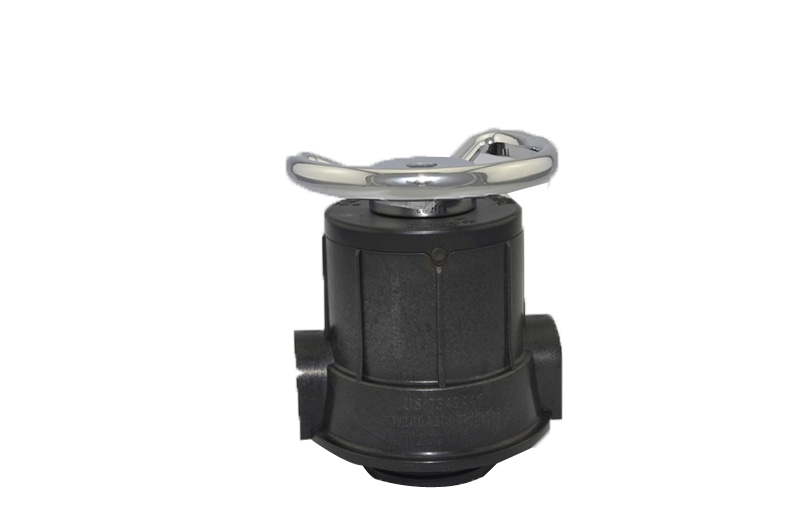

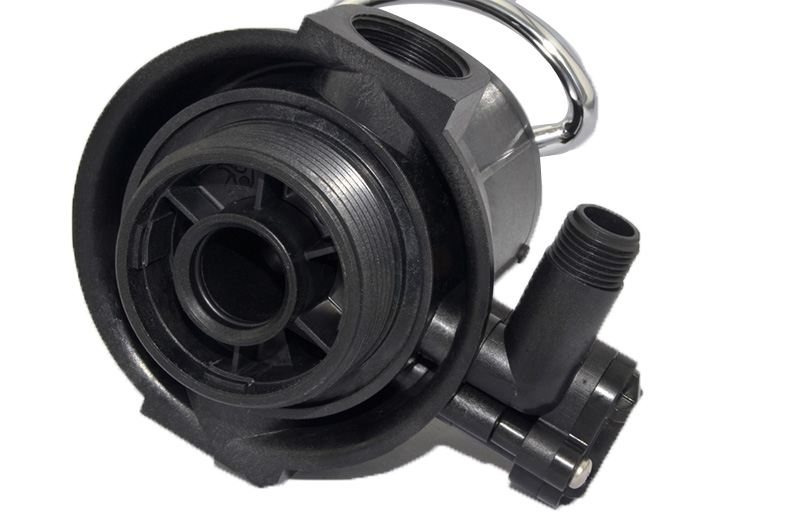

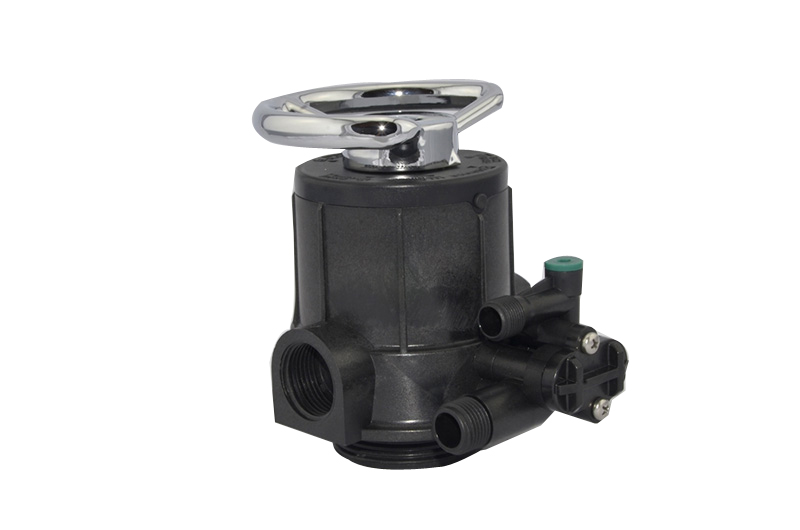

F64A Manual Multiport Softener Control Valves
The F64A manual multiport softener control valve operates with a flow rate of 4m³/h. It carries out the functions of service, backwash, brine and slow rinse, brine refill, and fast rinse. The functions can be switched by rotating the handwheel.
| Model | F64A1/A2（61104/ 61204） |
| Handle material | Plasctic/metal |
| Mount type | Top mount |
| Inlet/outlet | 1"F |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--18" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU |
| Application | Ion exchange equipment, water softener for boiler system,RO pretreatment system |
