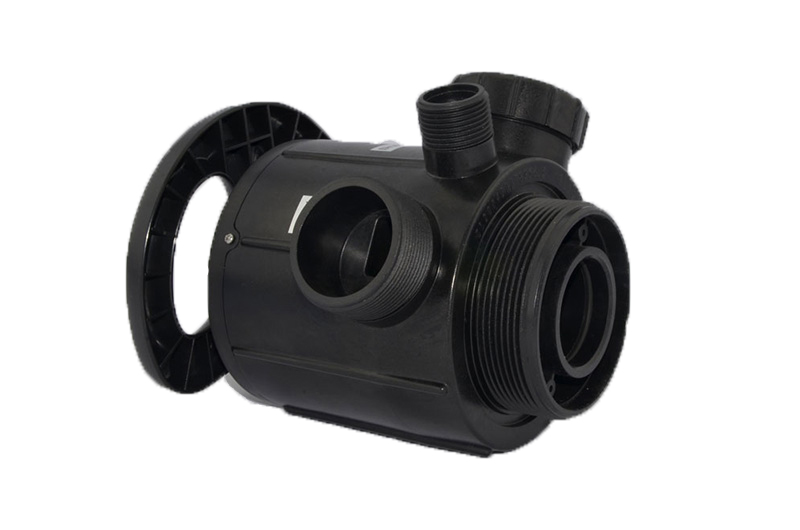

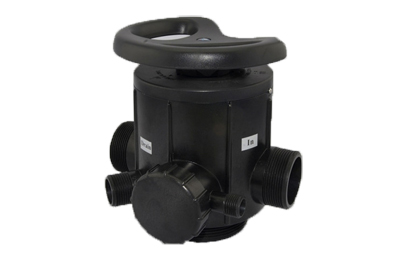

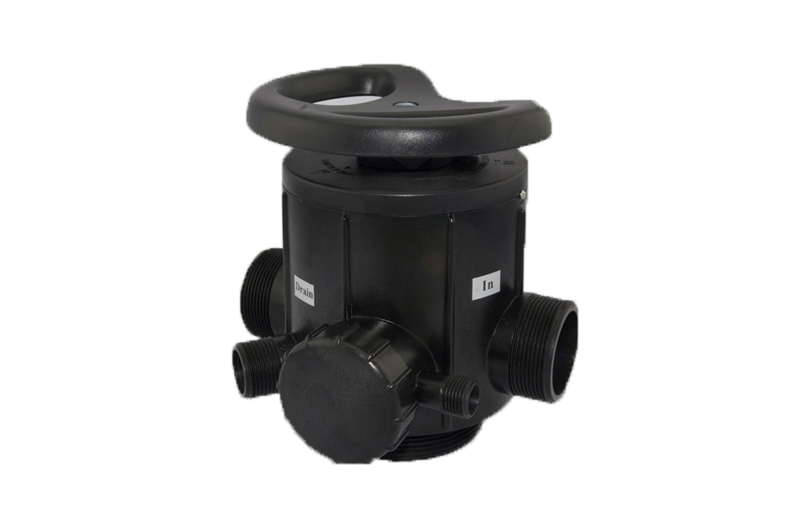

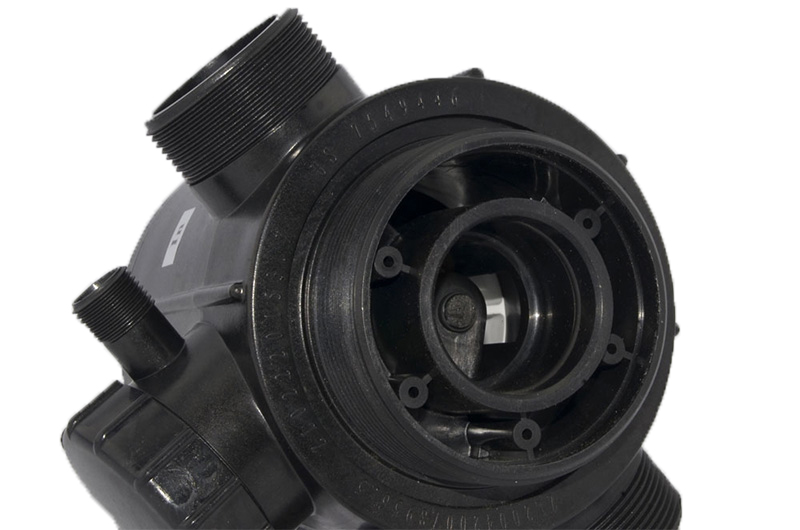

N64D Manual Multiport Softener Control Valves
The N64D manual multiport softener control valve delivers a flow rate of 10m³/h. The valve is able to carry out the functions of service, backwash, brine and slow rinsing, brine refill, and fast rinsing through the rotation of the handwheel.
| Model | N64D（61210） |
| Handwheel material | Plastic |
| Mount type | Top mount / side mount |
| Inlet/outlet | 2"M |
| Drain | 1"M |
| Brine line connector | 1/2"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.5"D-GB |
| Flow rate | 10m³/h |
| Filter tank | 10"--30" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU |
| Application | Ion exchange equipment, water softener for boiler system,RO pretreatment system |
