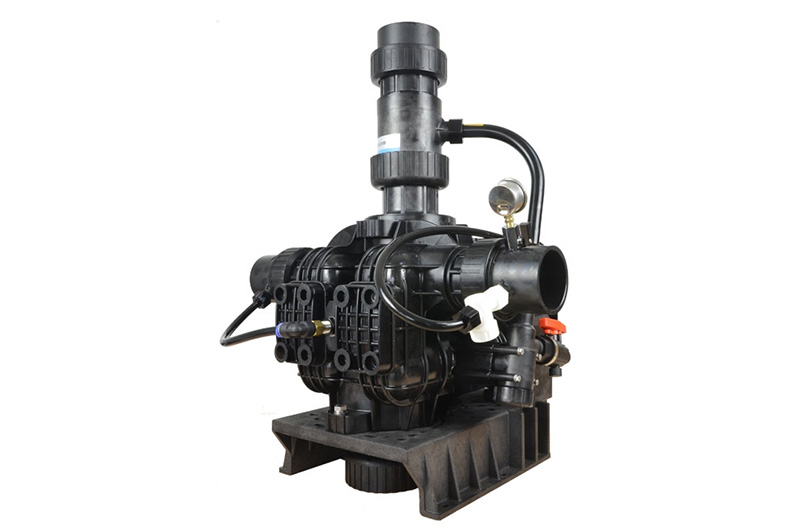

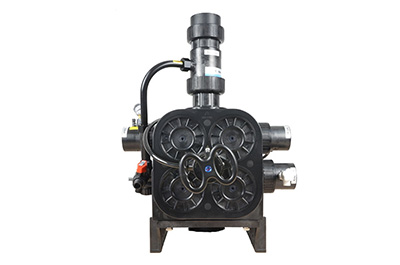

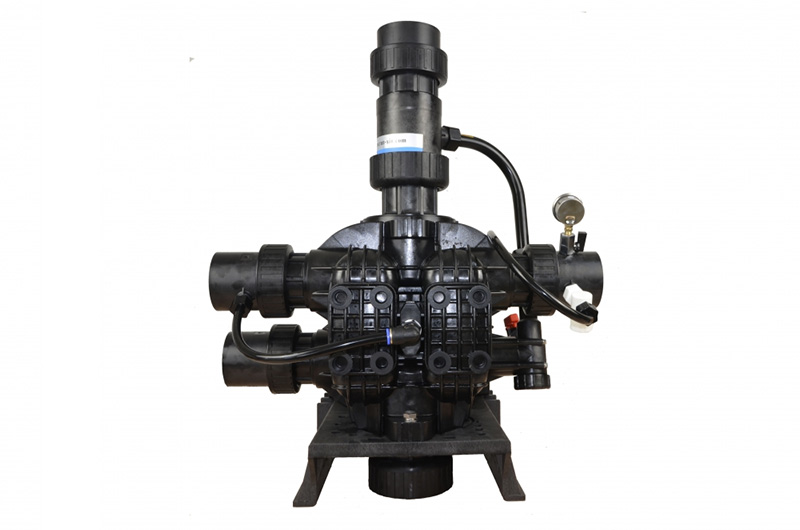

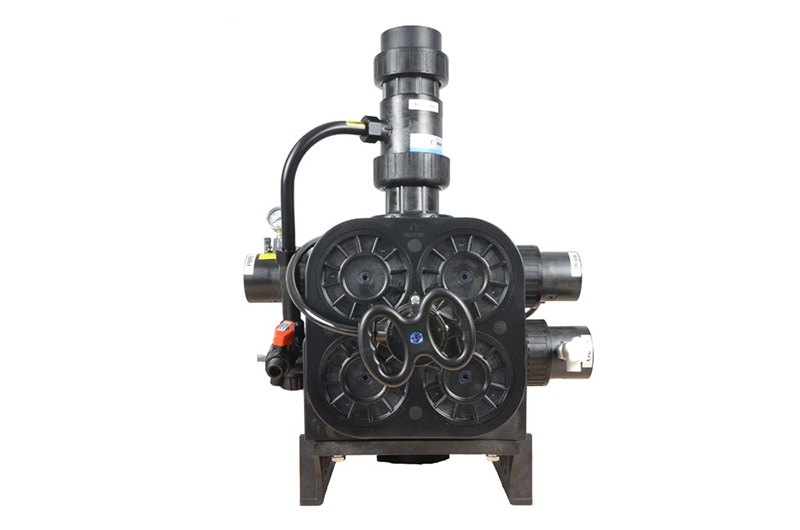

F112AS Manual Multiport Softener Control Valves
Operating with a flow rate of 40m³/h, the F112AS manual multiport softener control valve comes with 4 ports in a T-configuration in the valve body. Unfiltered water is brought in from the pump port, which is then sent to different passages for treatment. The flow passages are easily controlled through pushing or pulling the hydraulically balanced pistons in the valve. Adjusting these pistons, enables the valve to be used for backwash, brine and slow rinse, fast rinse, and brine refill functions.
| Model | F112AS（61240） |
| Handwheel material | Plastic |
| Mount type | Top mount |
| Inlet/outlet | DN65 |
| Drain | DN65 |
| Brine line connector | 3/4" M |
| Mounting base | Top mount，Top and bottom distributor basket DN80 |
| Riser pipe | Top mount，Top and bottom distributor basket DN80 |
| Flow rate | 40m³/h |
| Filter tank | 36"--63" |
| Water pressure | 0.2-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU |
| Application | Ion exchange equipment, water treatment system, RO pretreatment system |
