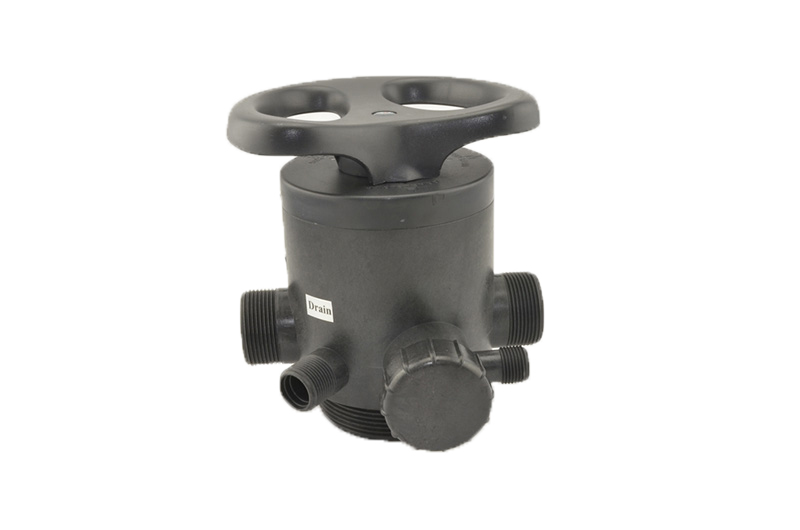

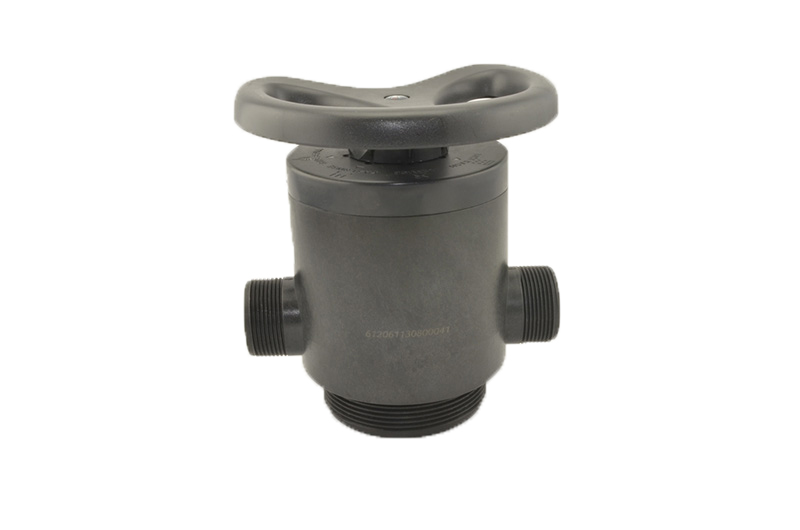

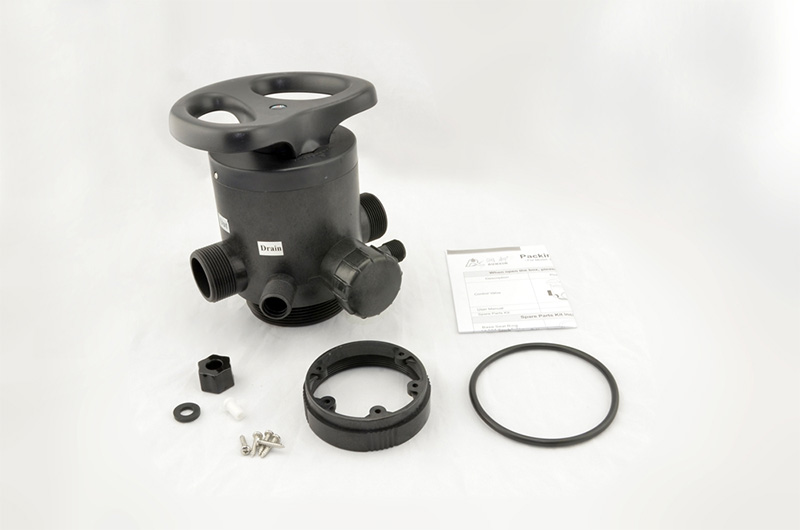

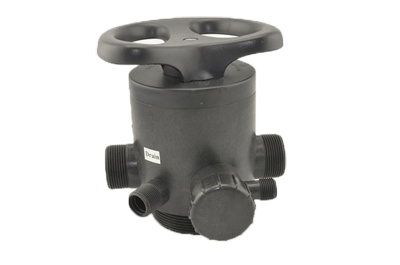

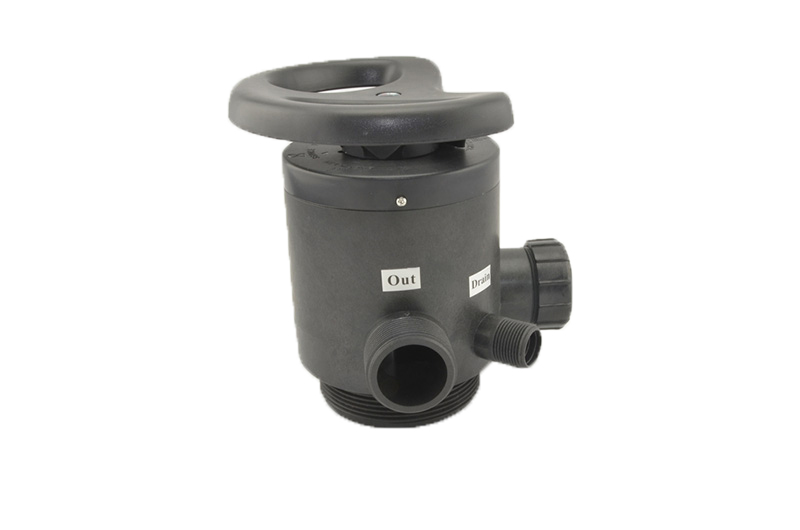

F64F Manual Multiport Softener Control Valves
With a flow rate of 6m³/h, the F64F manual multiport softener control valve can be used for service, backwash, brine and slow rinse, brine refill, and fast rinse operations. These functions can be changed by rotating the handwheels.
| Model | F64F（61206） |
| Handwheel material | Plastic |
| Mount type | Top mount |
| Inlet/outlet | 1.5"M |
| Drain | 3/4"M |
| Brine line connector | 1/2"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.25"D-GB |
| Flow rate | 6m³/h |
| Filter tank | 10"--14" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU |
| Application | Ion exchange equipment, water softener for boiler system,RO pretreatment system |
