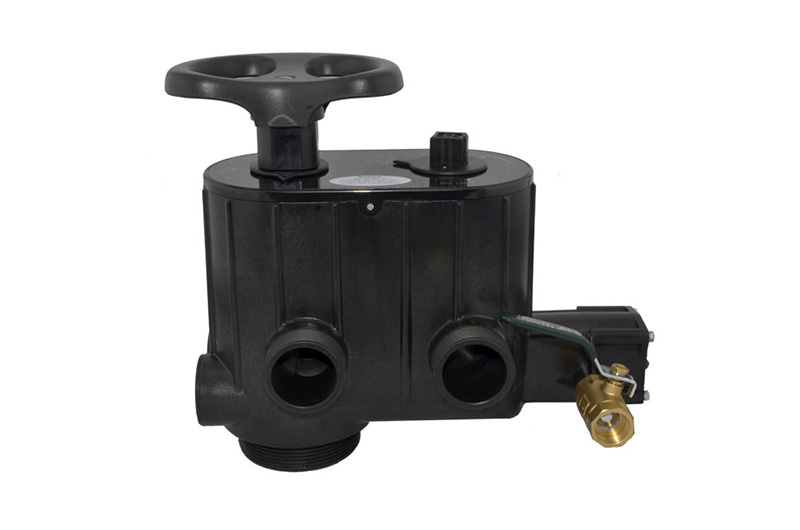

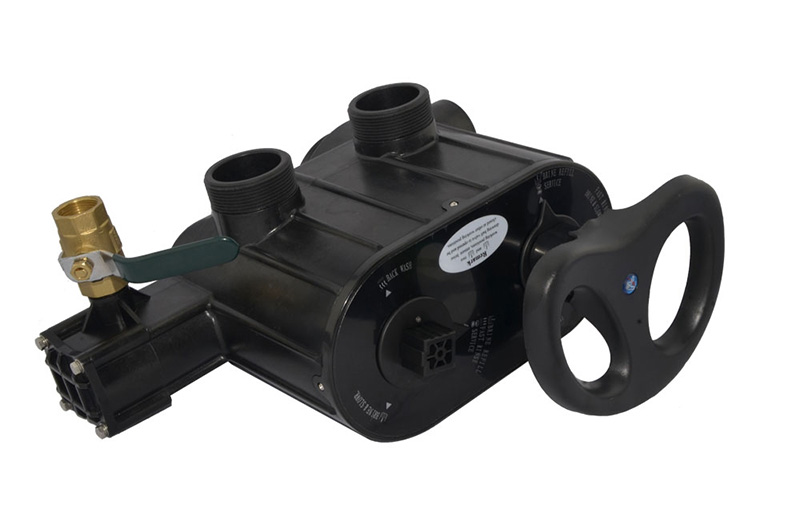

F77AS Manual Multiport Softener Control Valves

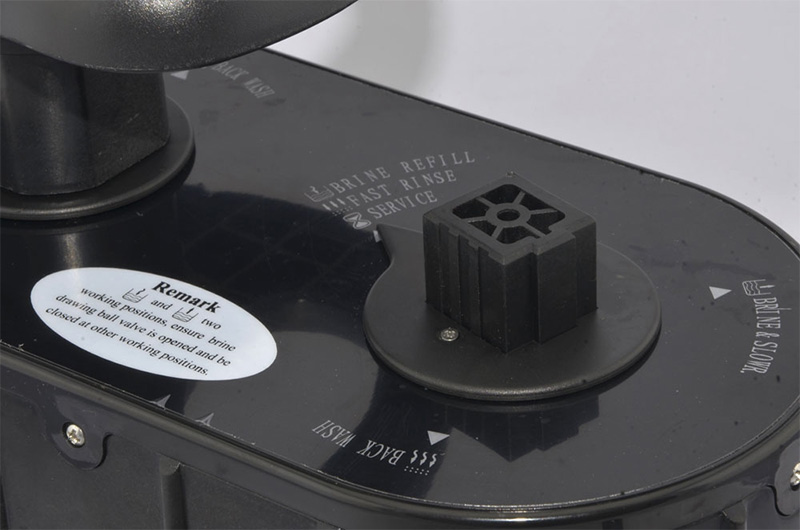

Featuring a flow rate of 15m³/h, the F77AS manual multiport softener control valve is equipped with two valve cores, one controlling the inflow of the water, the other responsible for outflow. The different functions such as service, backwash, brine and slow rinse, brine refill and fast rinse can be realized through rotating the handwheel counterclockwise to put the two pointers in the desired precision.
| Model | F77AS（61215） |
| Handle material | Plastic |
| Mount type | Top mount / side mount |
| Inlet/outlet | 2"M |
| Drain | 2"M，installed with 1.5"M flow control connector |
| Brine line connector | 3/4"M |
| Mounting base | 4" -8UN |
| Riser pipe | 1.5" D-GB |
| Flow rate | 15m³/h |
| Filter tank | 24"--42" |
| Water pressure | 0.2-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜2FTU |
| Application | Ion exchange equipment, water softener for boiler system, RO pretreatment system |
