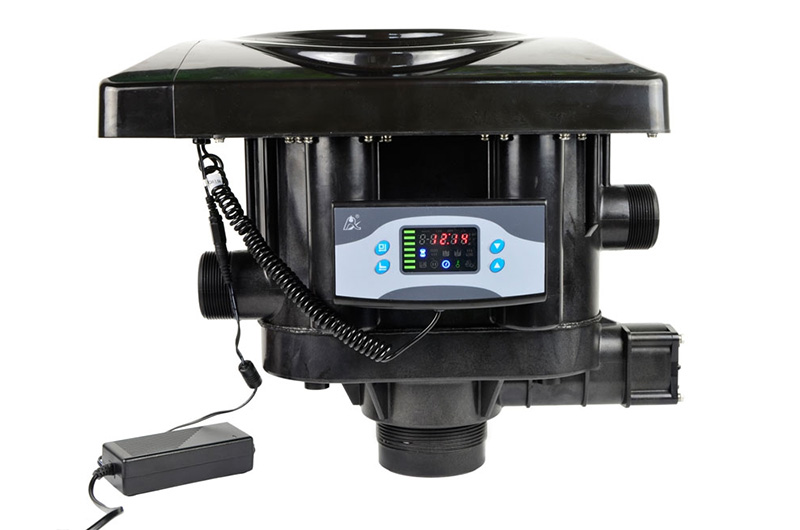

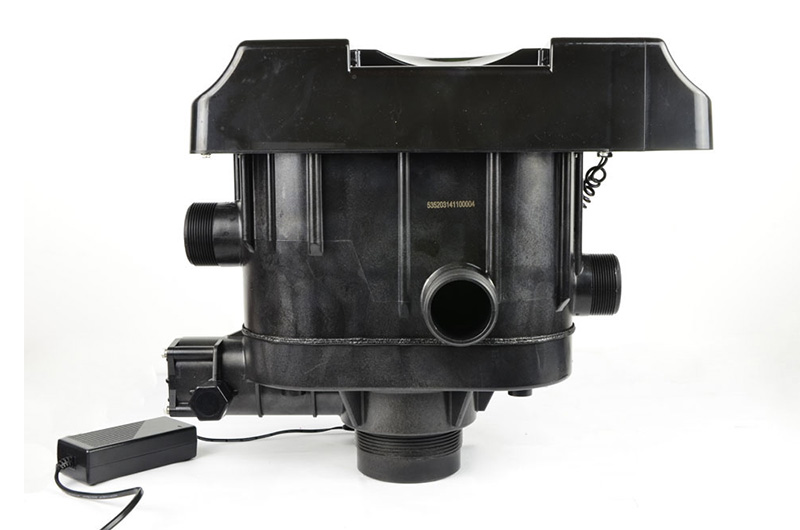

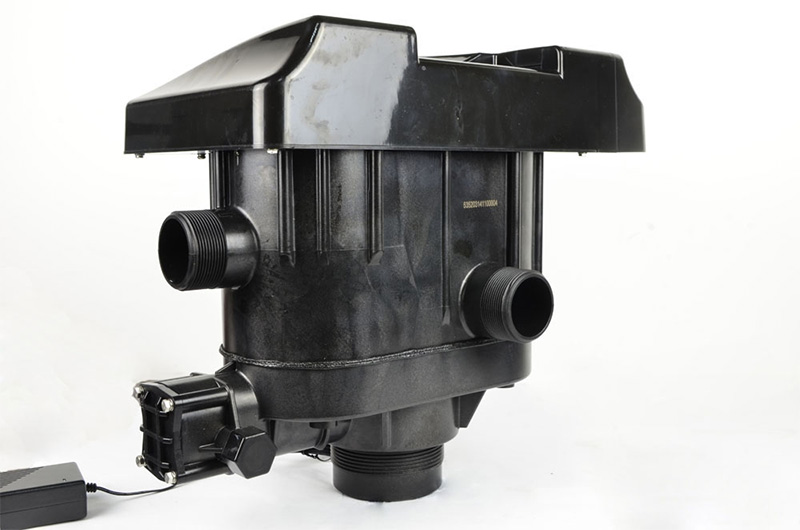

F111B1/B3 Automatic Multiport Filter Valves
The F111B1 automatic multiport filter valve is a timer clock type valve while the F111B3 is a meter type. Featuring a flow rate of 20m³/h, the F111B1/B3 adopts a planar and corrosion resistant gasket for opening and closing. This product is equipped with two cores, one controlling the inflow of water and brine, the other responsible for outflow and drainage. Through modifications to parameters, different functions such as service, backwash, and fast rinse can be realized.
| Model | F111B1/B3（53520T/53620T） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 2"M |
| Drain | 2"M |
| Mounting base | 4"-8UN |
| Riser pipe | 2"D-GB( Outer diameter63mm) |
| Flow rate | 20m³/h |
| Filter tank | 28"--40" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Power adapter | InputAC100~240V/50~60HZ OutputDC24V/1.5A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
