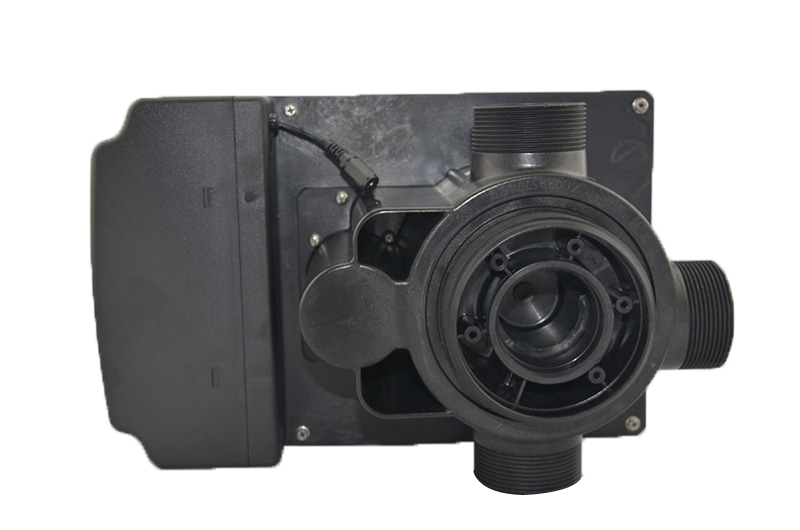

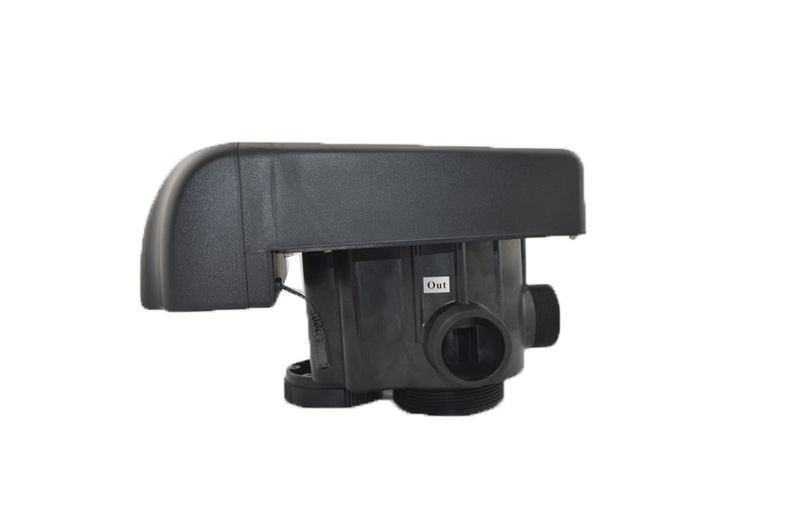

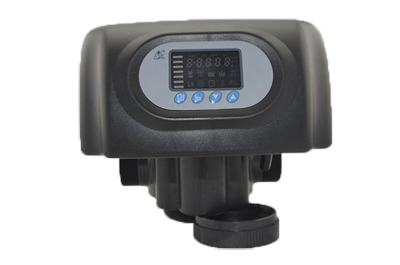

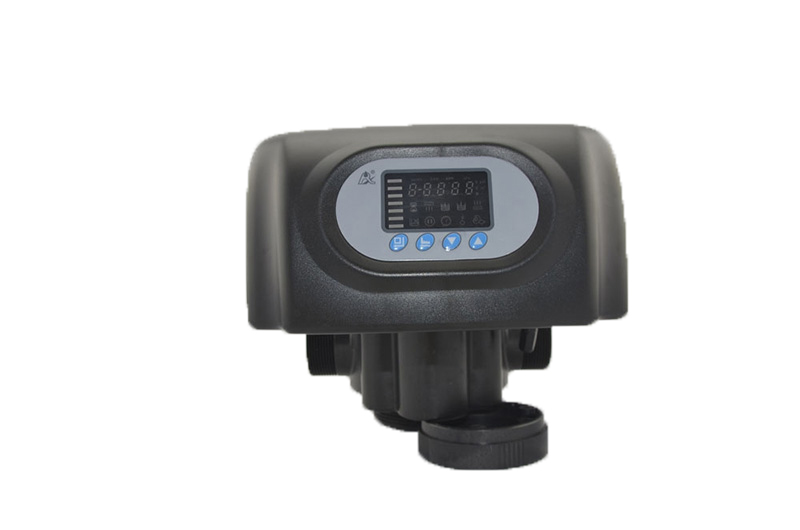

N75A Automatic Multiport Filter Valves
Featuring a flow rate of 10m³/h, the N75A automatic multiport filter valve adopts a planar and corrosion resistant gasket for opening and closing. The different functions such as service, backwash and fast rinse can be realized through simple parameter modifications. The N75A1 is a timer clock type while the N75A3 is a meter type.
| Model | N75A1/A3（53510/53610） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 2"M |
| Drain | 2"M |
| Mounting base | 4"-8UN |
| Riser pipe | 1.5"D-GB |
| Flow rate | 10m³/h |
| Filter tank | 10"--24" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/1.5A |
| Application | Manganese and RO pretreatment |
| Filter media | Quartz sand, activated carbon.. |
