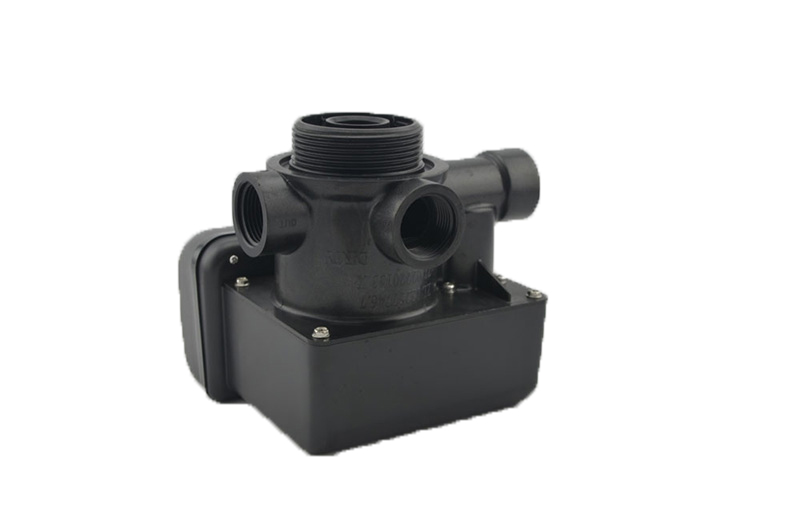

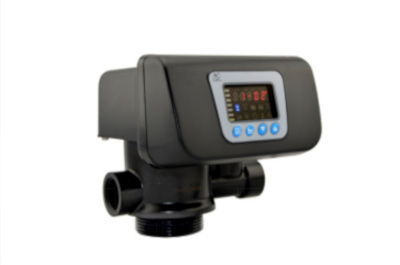

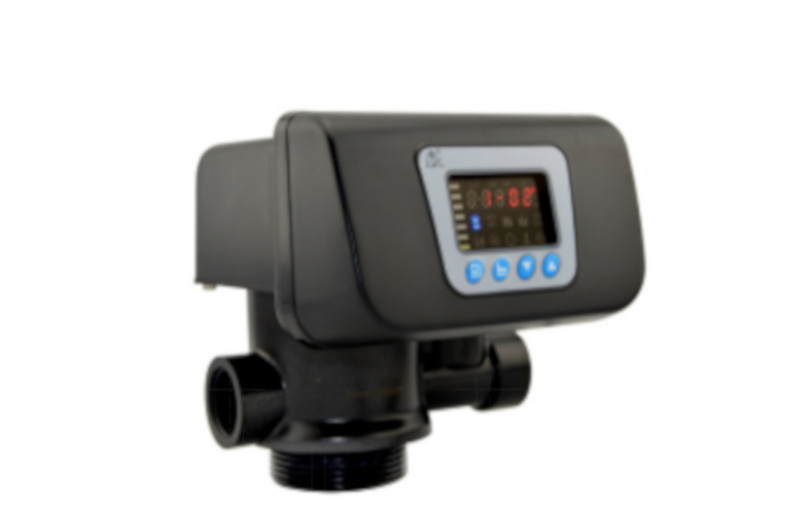

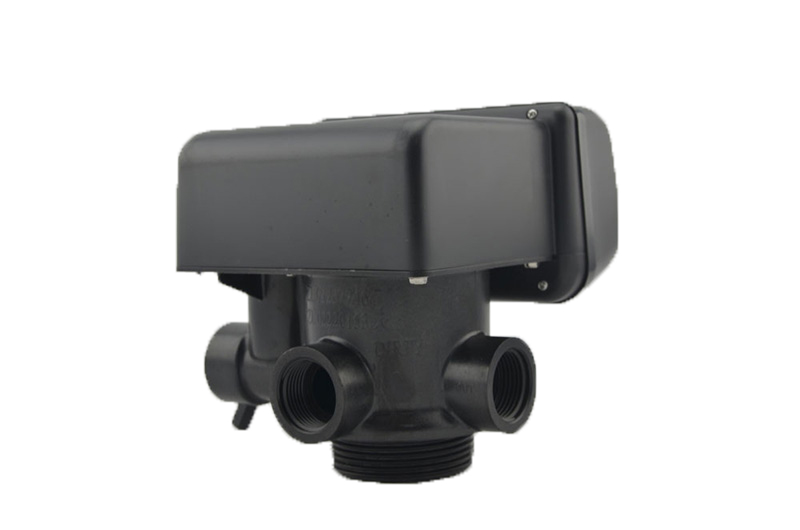

F67C Automatic Multiport Filter Valves
The F67C automatic multiport filter valves feature a flow rate of 4m³/h. It adopts a planar and corrosion resistant gasket for opening and closing. The different functions of service, backwash, and fast rinsing can be realized through simple parameter modification. The F67C1 is a timer clock type while the F67C3 is a meter type.
| Model | F67C1（53504）/F67C3 (53604) |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 1"F |
| Drain | 1"F |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--12" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |

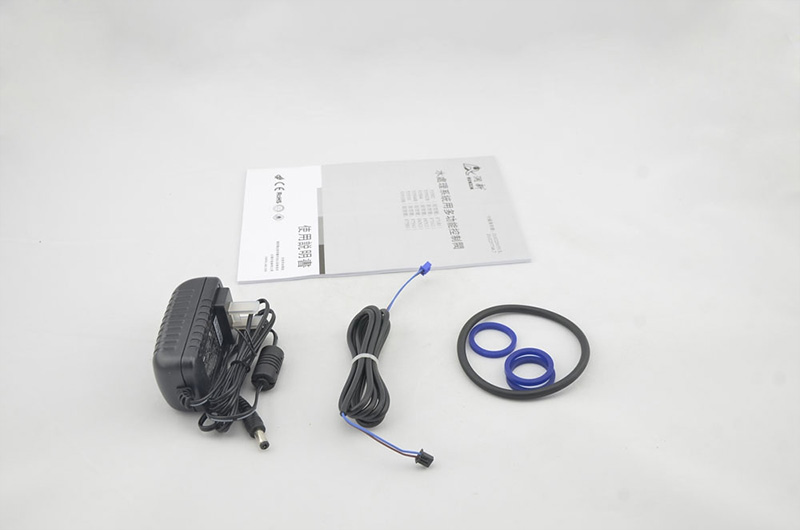

| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon... |
