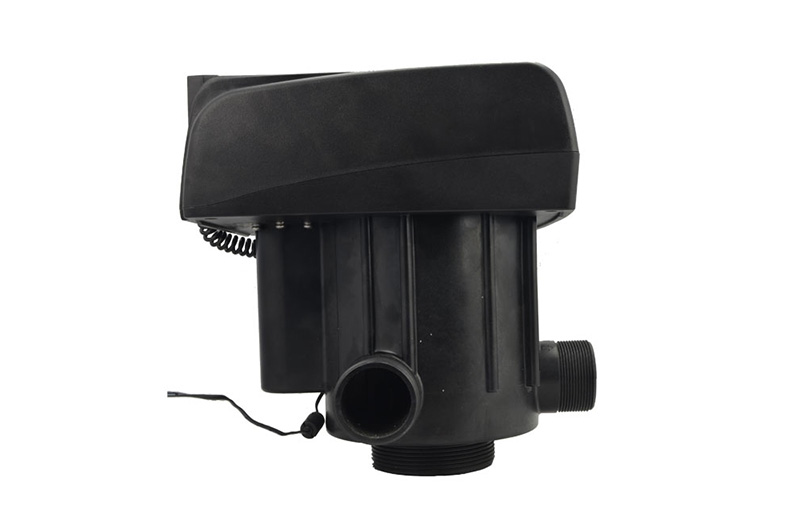

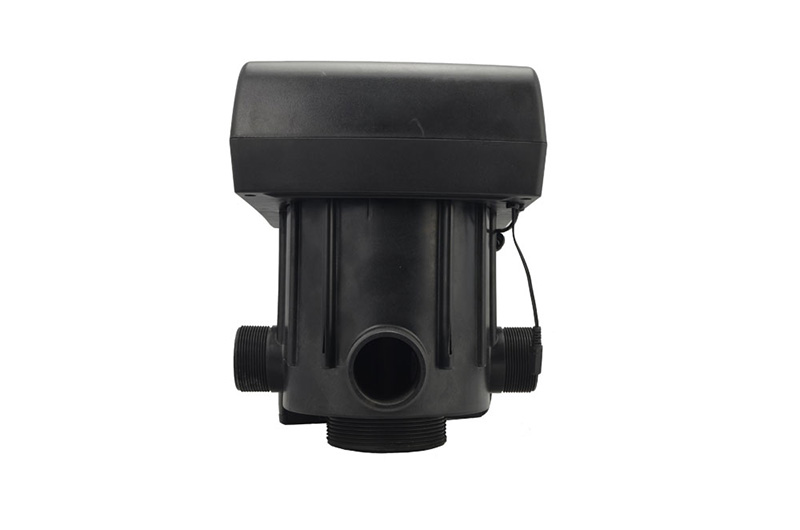

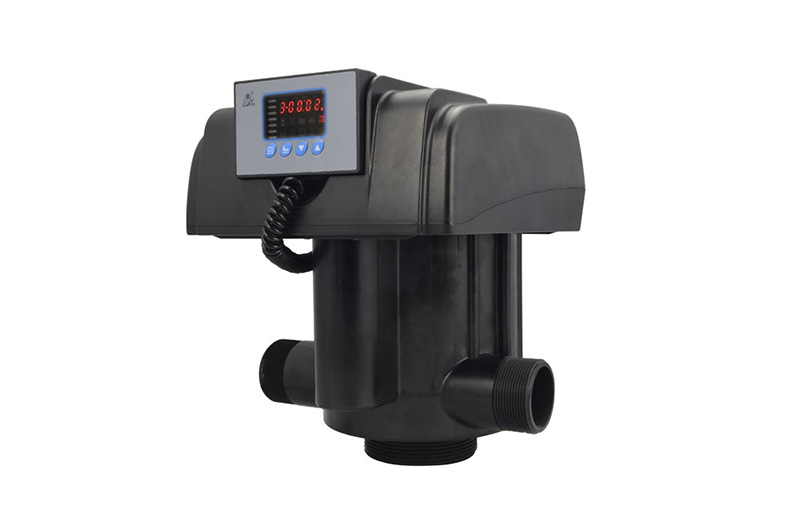

F99B1/B3 Automatic Multiport Filter Valves
Delivering a flow rate of 15m³/h, the F99B1/B3 automatic multiport filter valves can complete service, backwash, and fast rinse functions through simple parameter modifications. It adopts a planar and corrosion resistant gasket for opening and closing. The F99B1 is a timer clock type valve while the F99B3 is a meter type.
| Model | F99B1/B3（53515/53615） |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount / side mount |
| Inlet/outlet | 2"M |
| Drain | 2"M |
| Mounting base | 4"-8UN |
| Riser pipe | 1.5"D-GB |
| Flow rate | 15m³/h |
| Filter tank | 14"--30" |
| Water pressure | 0.2-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/1.5A |
| Application | Manganese and RO pretreatment |
| Filter media | Quartz sand, activated carbon |
