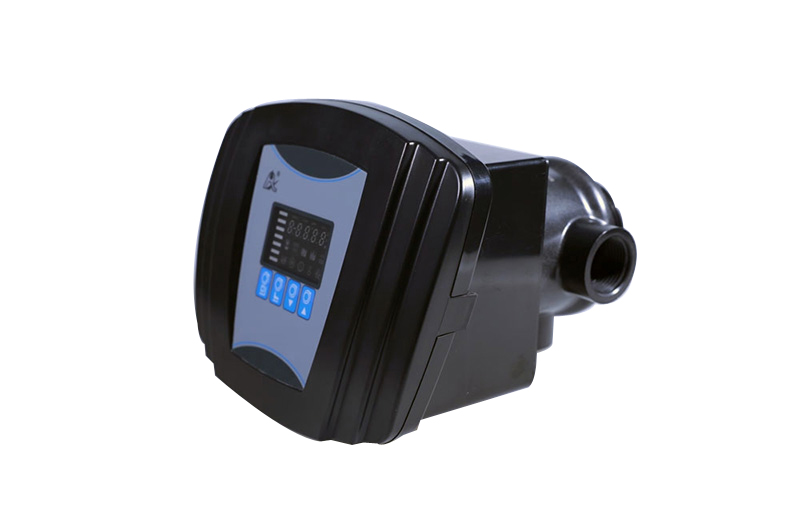

F67I1 Automatic Multiport Filter Valves
Featuring a flow rate of 4m³/h, the F67I1 valve adopts a planar and corrosion resistant gasket for opening and closing. Service, backwash, and fast rinsing functions can be completed through parameter medication.
| Model | F67I1（52504C） |
| Regeneration | Time clock type |
| Mount type | Side mount |
| Inlet/outlet | 1"F |
| Drain | 1"F |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--12" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
