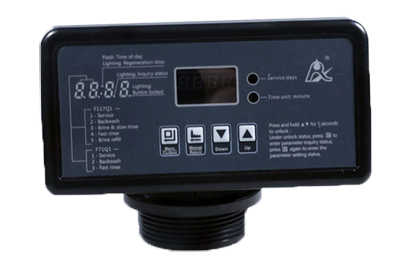

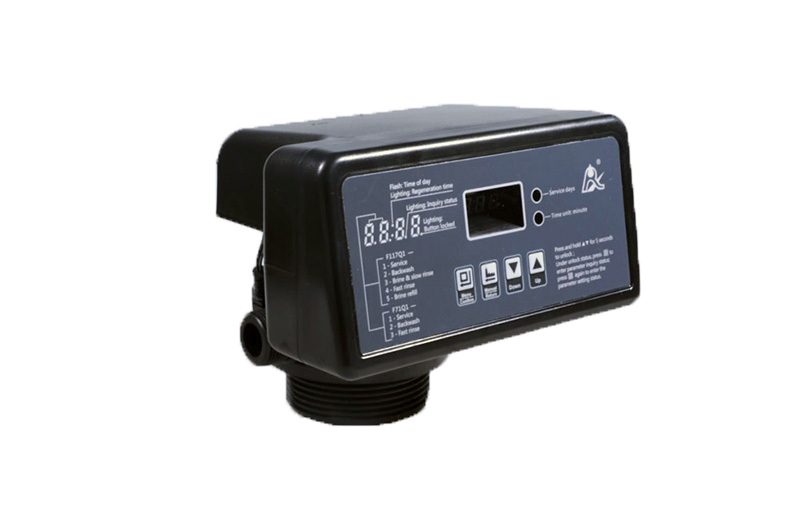

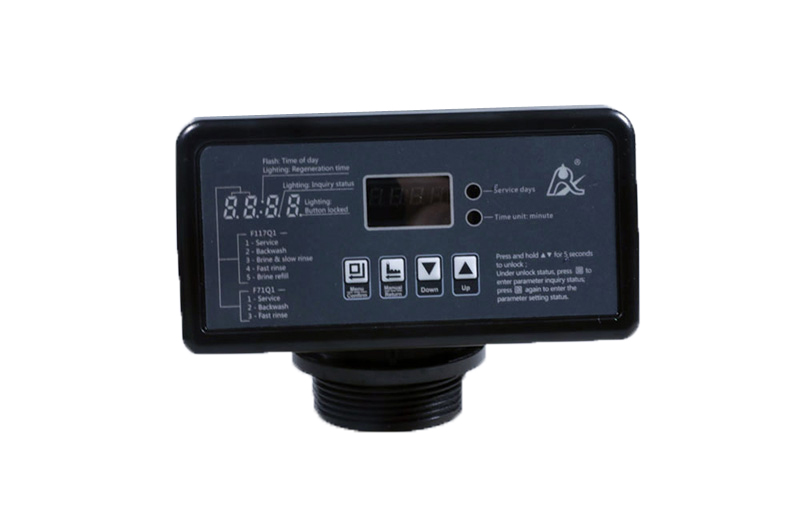

F71Q Automatic Multiport Filter Valves
Featuring a flow rate of 2m³/h, the F71Q automatic multiport filter valve adopts a planar and corrosion resistant gasket for opening and closing. The different functions such as service, backwash and fast rinsing can be realized through parameters modifications. The F71Q1 is a timer clock type while the F71Q3 is a meter type.
| Model | F71Q1（55502）/ F71Q3(55602） |
| Mount type | Top mount |
| Inlet/outlet | 3/4" M |
| Drain | 3/4" M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 2m³/h |
| Filter tank | 6"--10" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Power adapter | Input AC100~240V/50~60HZ OutputDC12V/1.5A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
