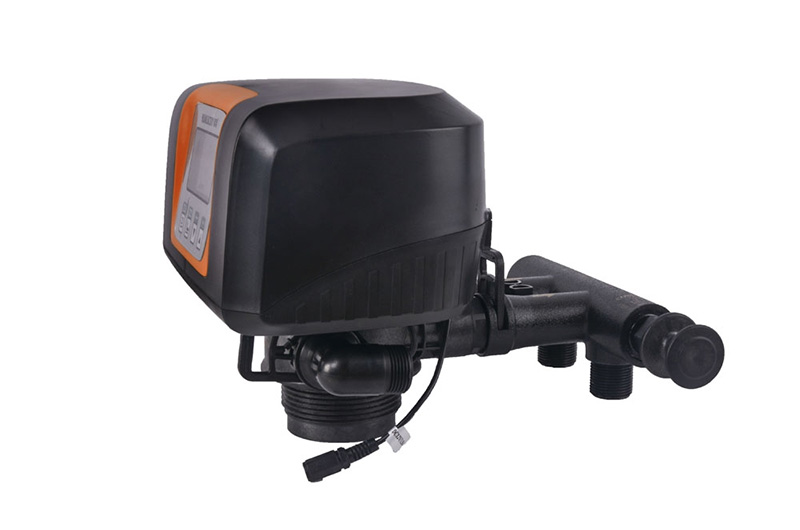

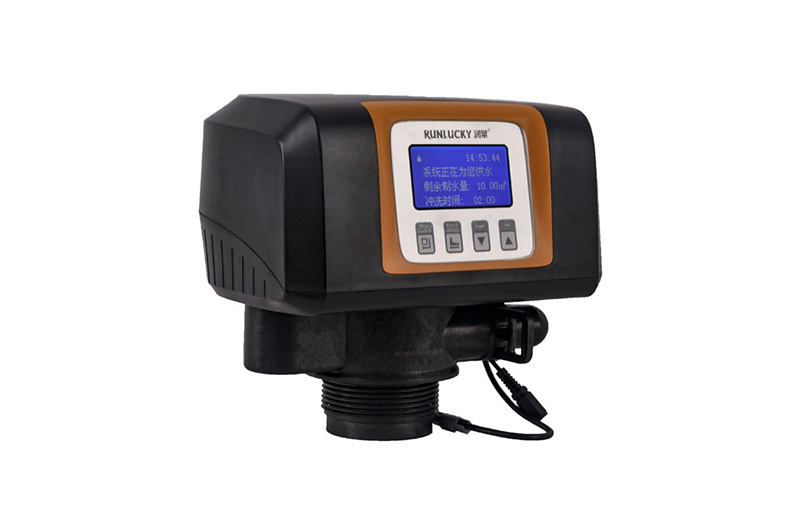

F67N Automatic Multiport Filter Valves
The F67N automatic multiport filter valve is leakproof and adopts a planar and corrosion resistant gasket for opening and closing. Service, backwash, and fast rinse functions are realized through simple parameter modifications. The valve is easy to use and equipped with a bypass valve of F70H3.
| Model | F67N3/70H |
| Inlet/outlet | 3/4"M |
| Drain | 3/4"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 2.5m³/h |
| Filter tank | 6"--14" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
