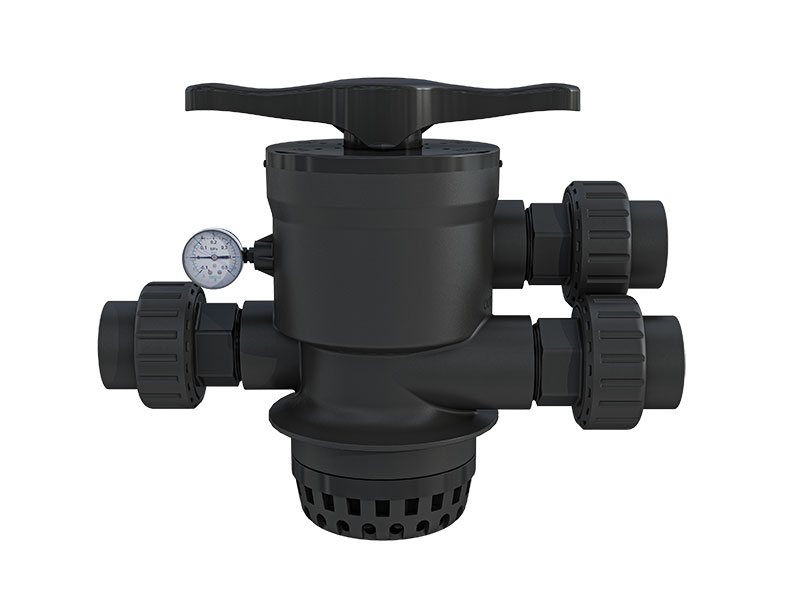

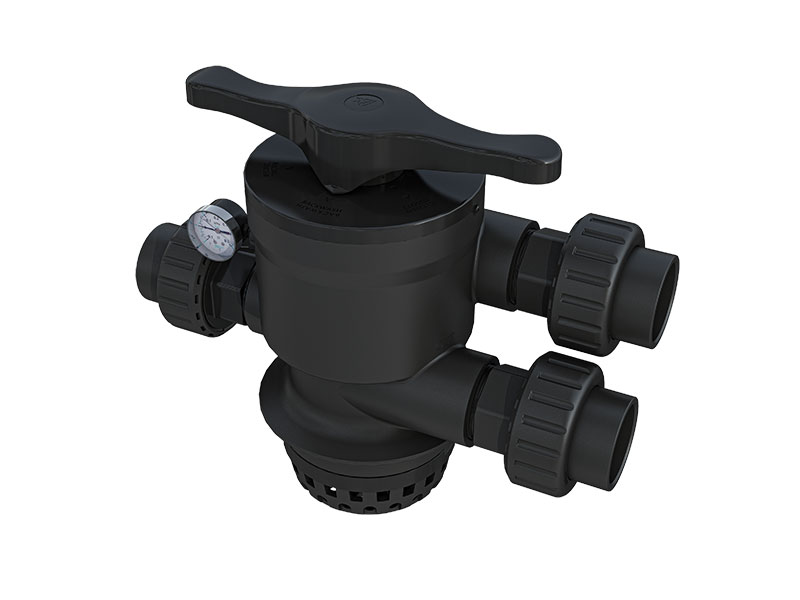

F139S/F139 Multiport Filter Valve
F139/F139S multiport filter valve is used for swimming pool filtration equipment. It adopts hermetic head faces with corrosion resistance for opening and closing. This multiport valve features 6 different settings - filter, backwash, rinse, recirculate, closed and waste/drain.
- The multiport filter valve comes with hermetic head faces, allowing for good performance in wear and corrosion resistance.
- Adopts top mount and clamp connection.
- Inlet, outlet and drain adopt glue connection.

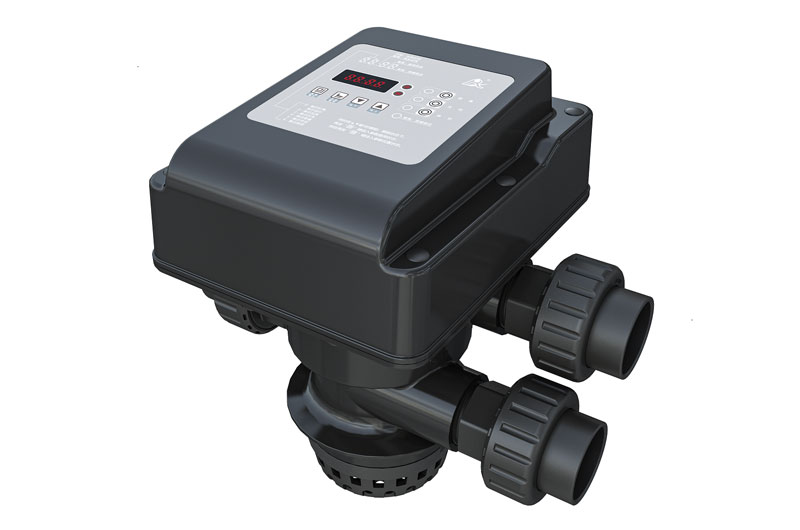

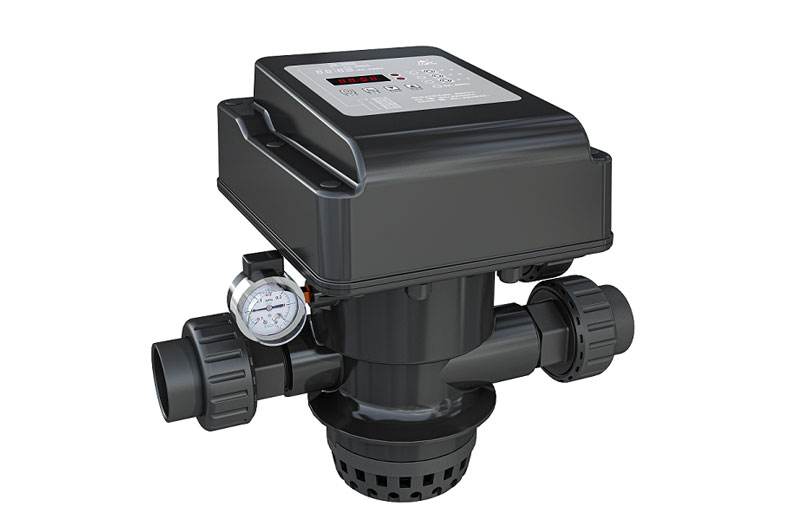

- Manual and automatic control is available.
- 6 different settings - filter, backwash, rinse, recirculate, closed and waste/drain
| Model | |
|
| Glue connection for Inlet/Outlet/Drain | 2" D-GB(O.D.: 63.3 mm UPVC pipe) or 2.375" OD(O.D.: 60.3mm UPVC pipe) | |

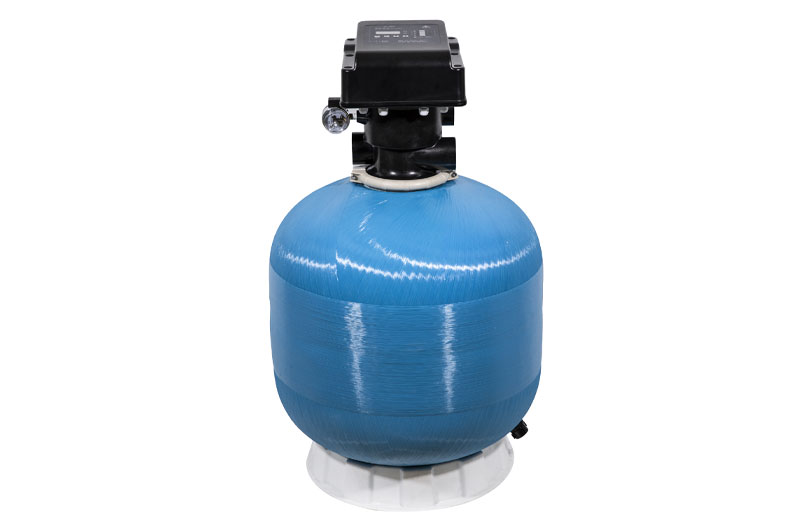

| Base | Clamp (Suitable for tank internal diameter with 150mm) | |
| Riser pipe | 1.5" D-GB (OD:50mm) or 1.9″ OD (O.D.: 48.3mm) | |
| Backwash flow rate m3/h@0.1MPa | 24 | |
| Remark | Automatic | Manual |
| Water pressure | ＜0.25MPa | |
| Water temperature | 5℃～50℃ | |
| Environment temperature | 5℃～50℃ | |
| Relative humidity | ≤95%（25℃） | |
| Power adapter | AC100～240V/50～60Hz | |
| Water turbidity | ＜20FTU | |
| Material | ABS | |
| Dimensions | 450mm*320mm*399m | |
| Color | Black | |
