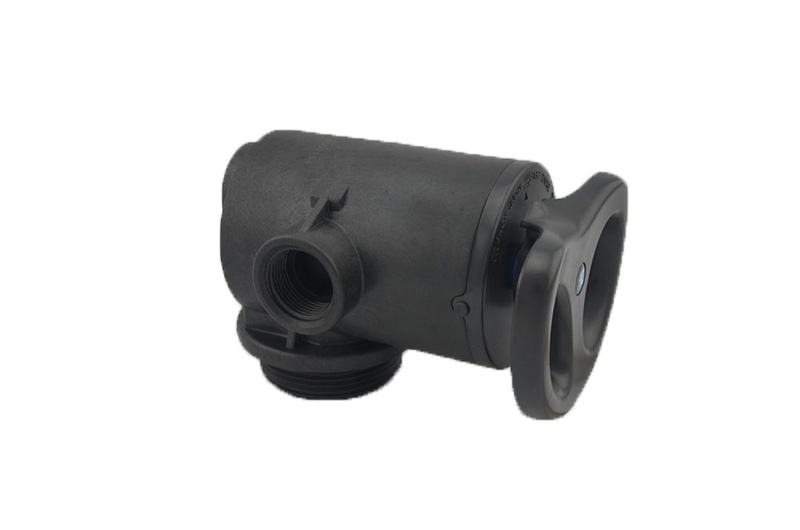

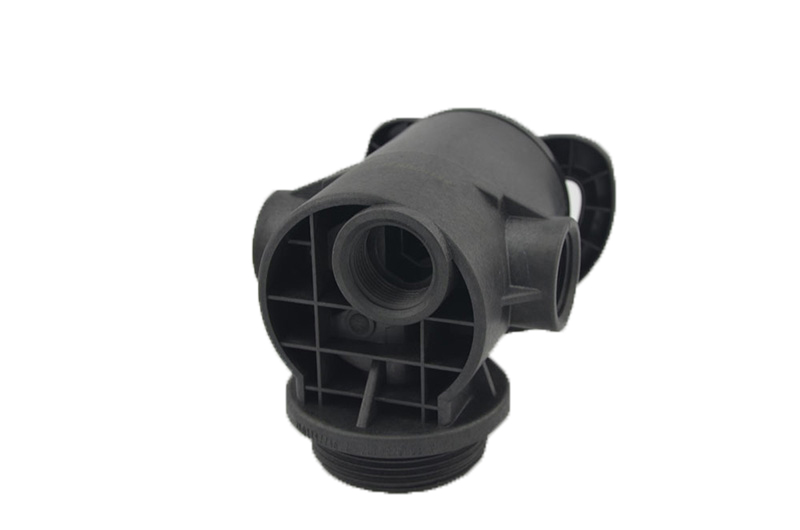

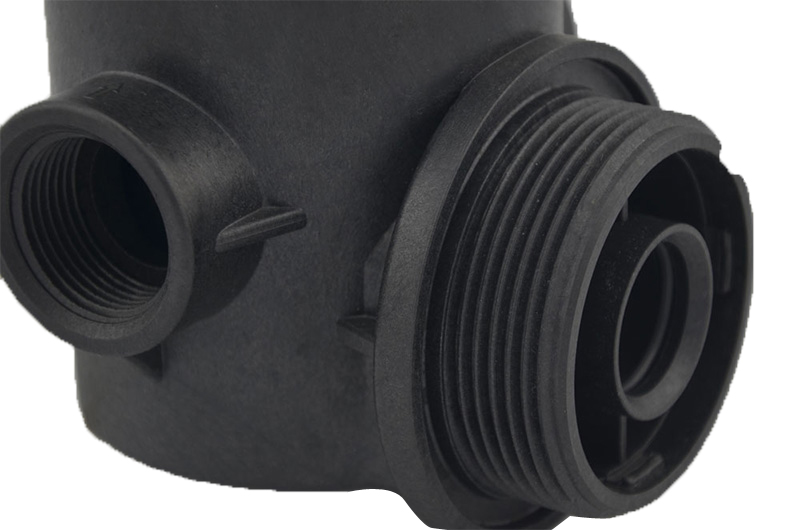

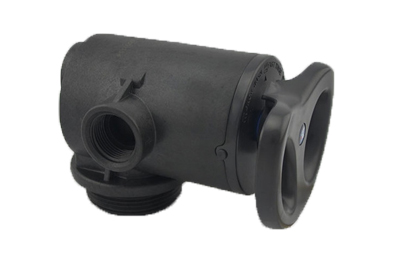

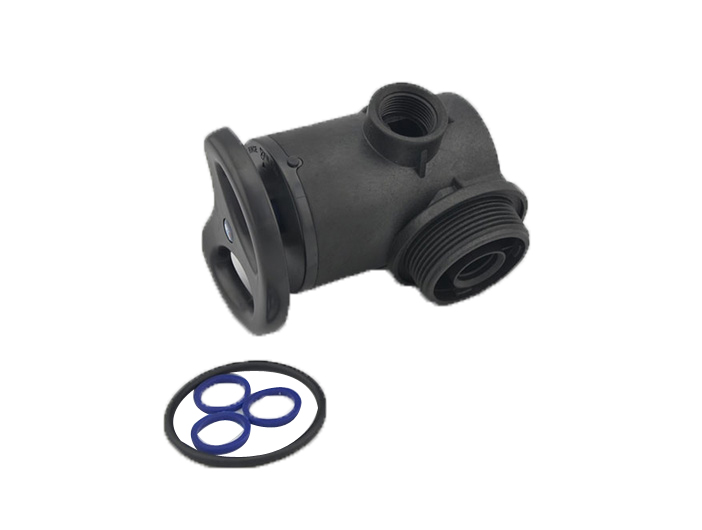

F56AC Manual Multiport Filter Valve
Delivering a flow rate of 4m³/h, the F56AC is equipped with a corrosion resistant gasket for opening and closing. It can realize service, backwash, and fast rinse functions. Also, it can work under pressure. With a rotating handwheel, you can quickly switch settings without shutting off the pump or power. These valves can be used in residential filtration systems, swimming pool filtrating, and RO pretreatment filtration systems.
| Model | F56AC（51204C） |
| Handwheel material | plastic |
| Mount type | Top mount |
| Inlet/outlet | 1"F |
| Drain | 1"F |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--12" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
