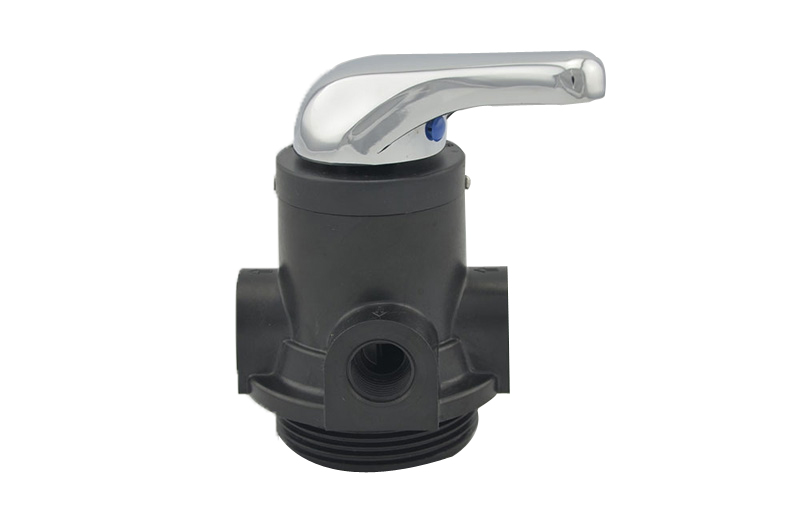

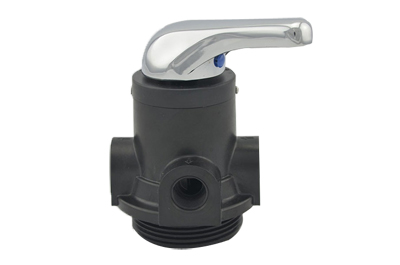

F56E Manual Multiport Filter Valve
Featuring a flow rate of 2m³/h, the F56E adopts a corrosion resistant gasket for opening and closing. It can realize three functions such as service, backwash and fast rinse. It can also work under pressure. With a metal handle, you can switch the settings easily with no need for turning off the pump or the power. But when selecting a valve setting, please make sure to depress the handle before turning. This product can be used in residential filtration systems, swimming pool filtrating and RO pretreatment filtration systems.
| Model | F56E1/E2（51102/51202） |
| Handle material | Metal/plastic |
| Mount type | Top mount |
| Inlet/outlet | 1/2 "F or 3/4"F |
| Drain | 1/2 "F or 3/4"F |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 2m³/h |
| Filter tank | 6"--10" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
