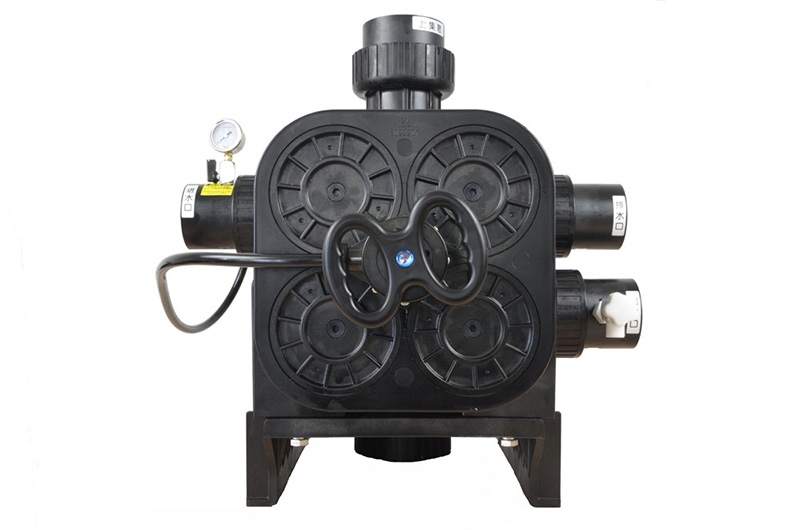

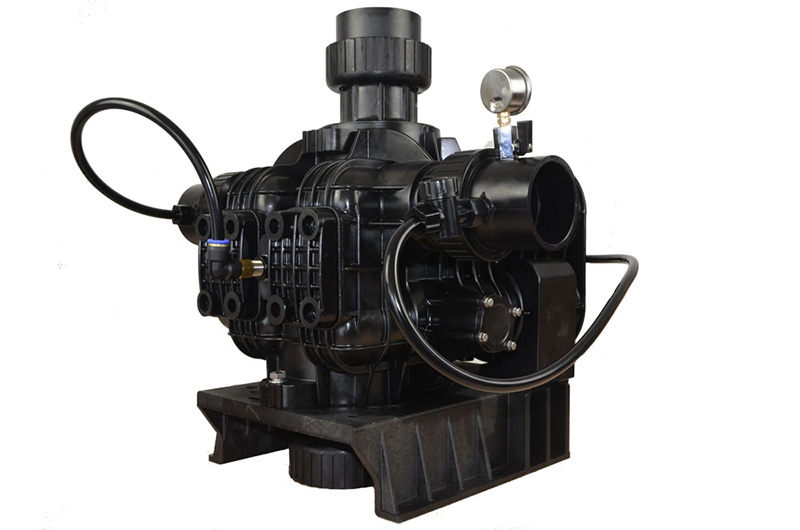

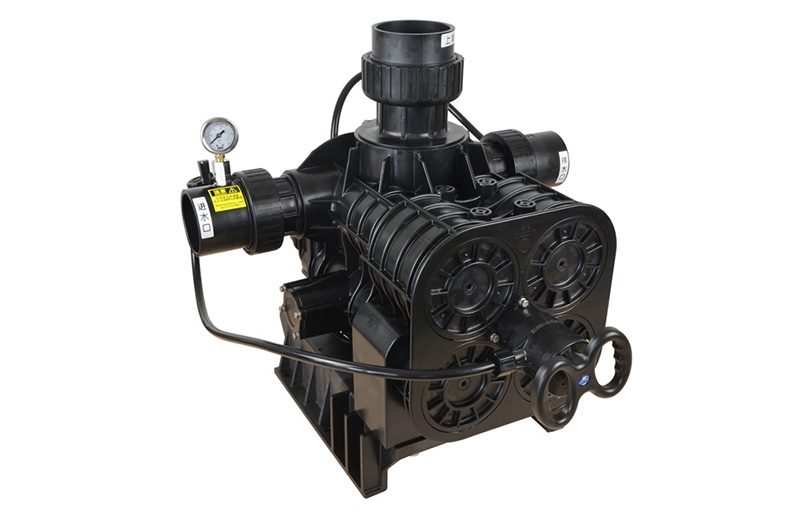

F112BS Filter Manual Valves
With a flow rate of 40m³/h, this multiport filter valve comes with 4 ports arranged in a T-configuration in valve body. The valve is equipped with a corrosion resistant gasket for opening and closing. The unfiltered water is brought in from the pump port, which is sent to different passages for treatment. The different flow passages are easily controlled by pushing or pulling the hydraulically balanced piston in the valve. This enables the valve to be used as a service, backwash, and fast rinse valve.
| Model | F112BS（51240） |
| Handle material | plastic |
| Mount type | side mount |
| Inlet/outlet | DN65 |
| Drain | DN65 |
| Mounting base | side mount， Top and bottom distributor basketDN80 |
| Riser pipe | side mount， Top and bottom distributor basketDN80 |
| Flow rate | 40m³/h |
| Filter tank | 24"--42" |
| Water pressure | 0.2-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Application | Filtration and RO pretreatment |
| Filter media | Quartz sand, activated carbon |
