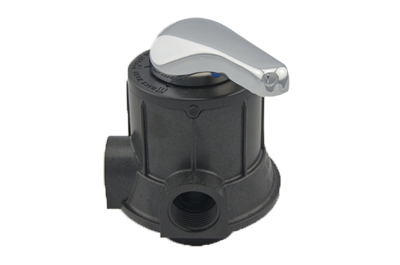

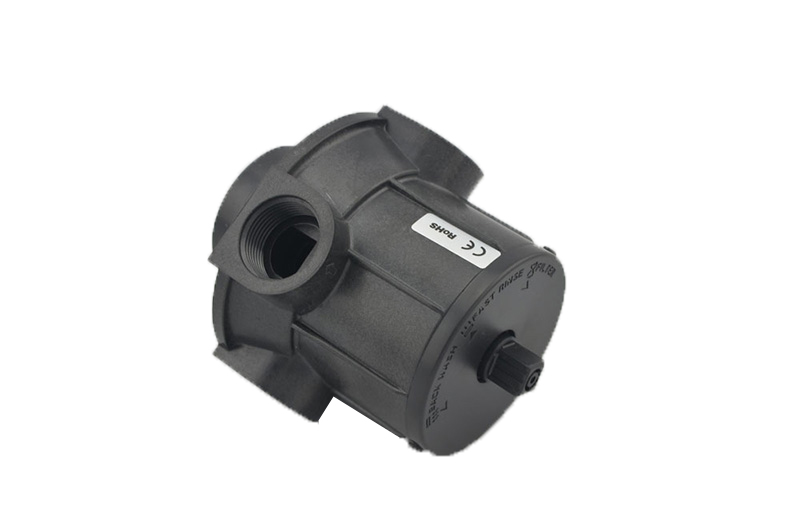

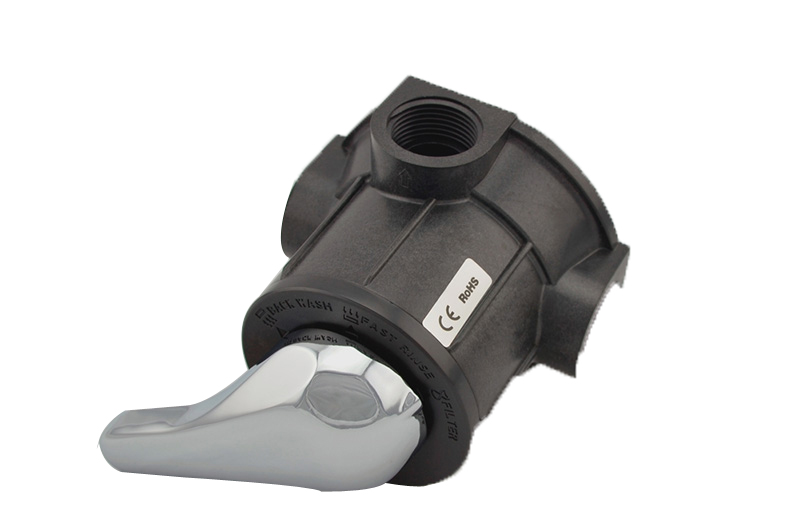

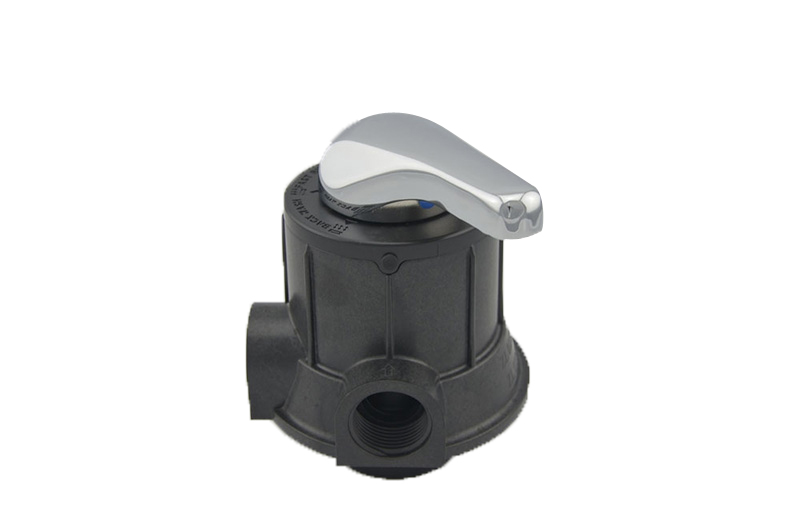

F56A Manual Multiport Filter Valve
The F56A manual multiport filter valve features a flow rate of 4m³/h and utilizes a corrosion resistant gasket for opening and closing functions. It can be used as a service, backwash, and fast rinse valve, even under pressure. With a handle, you can switch the settings easily without turning off the pump or the power. When selecting a valve setting, make sure to always depress the handle before turning.
| Model | F56A1/A2（51104/51204） |
| Handle material | Metal/plastic |
| Mount type | Top mount |
| Inlet/outlet | 1"F |
| Drain | 1"F |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--12" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
