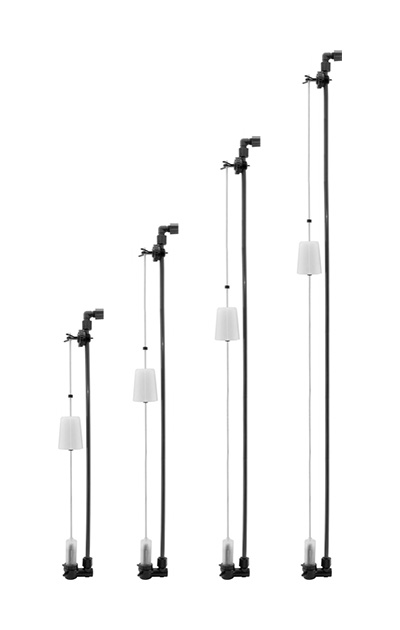

Brine Valve Assembly
Brine valve assembly plays two roles in a regeneration system. The first is to prevent air from entering the resin tank by floating a ball in the brine valve at the brine and slow rinse stage in a process called an air check function. The second controls the refill quantity by adjusting the floater position outside the brine valve.
Multiple brine valve assembly lengths are available for customers to choose from, as are customized options.
| Model | H（mm） |
| 43020 | 1210.5 |
| 43021 | 1010.5 |
| 43022 | 810.5 |
| 43023 | 610.5 |
| 43029 | 410 |
