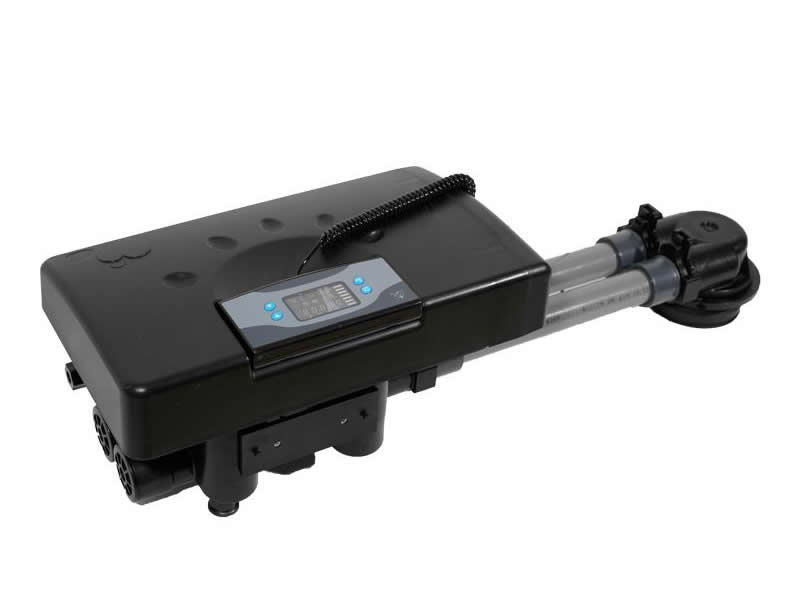

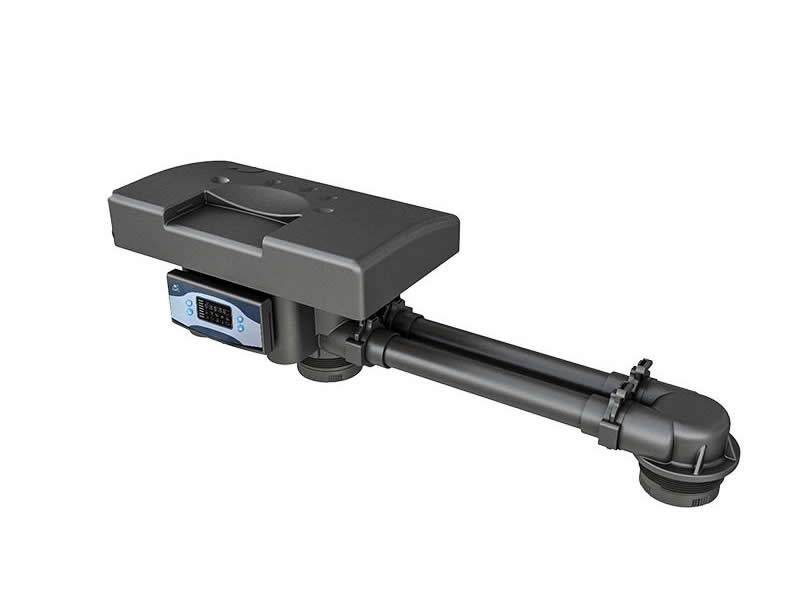

F135 Twin Alternating Softener Valves
F135 twin alternating softener valve is an industrial automatic softener valve that adopts high flatness and corrosion resistant seal surfaces for closing and opening to ensure high sealing performance, the flow rate can reach 10m³/h. When automatic valve control receives signal of set data (flow rate), it can automatically realize the functions of service, backwash, slow rinse, brine refill and fast rinse.
- Valve body is made of 10% glass fiber reinforced ABS material;
- Dual valve core structure, one is always in service, while the other one is in standby, with top mount;
- Small differential pressure of 0.3MPa, flow rate reaches 10m³/h;
- LED color display;
| Model | F135 |
| Inlet/outlet | 1.5"M |
| Drain | 3/4"M |
| Brine line connector | 1/2"M |
| Mounting base | 4"-8UN |
| Flow rate | 10m³/h |
| Filter tank | 20"--30" |
| Mount type | Top mount, one in service and other one in standby |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜2FTU |
| Ambient temperature | 5-50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/1.5A |
| Application | Residential water softener, ion exchange equipment, boiler water softening system, reverse osmosis pretreatment system |
