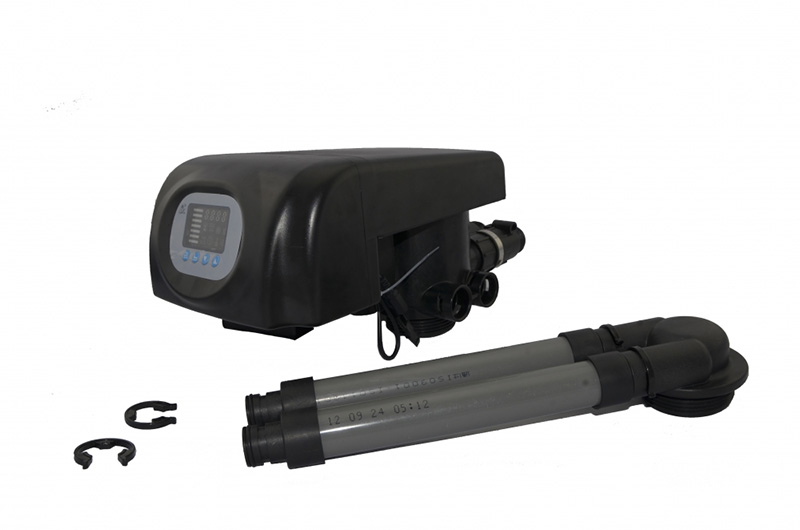

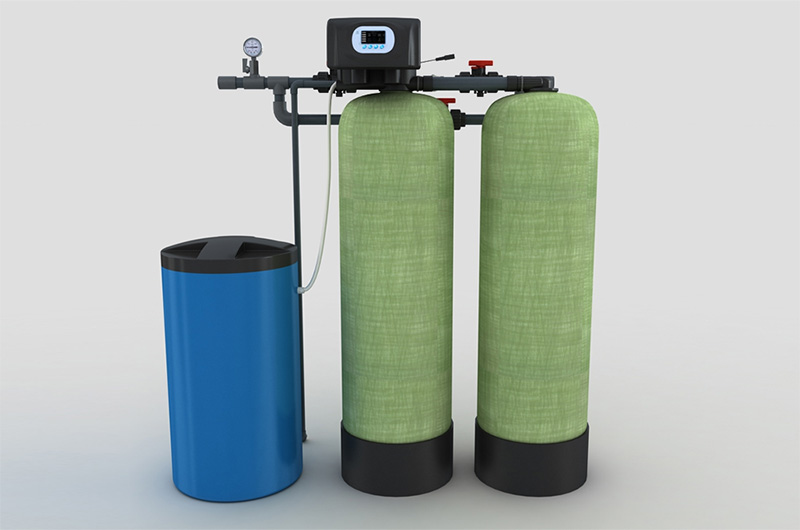

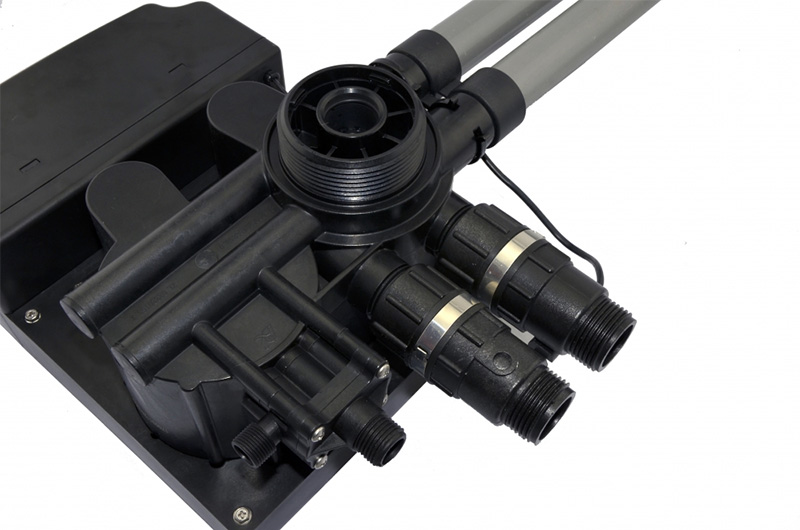

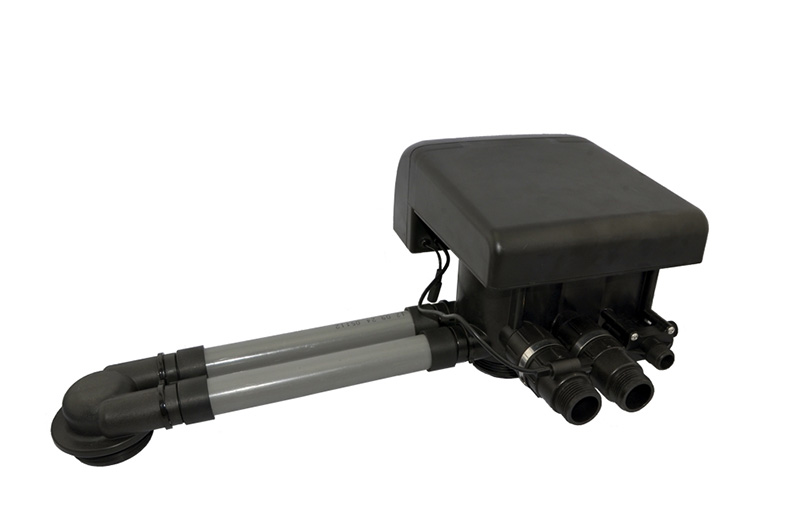

F73 Twin Alternating Softener Configuration (one valve with two tanks)
With a flow rate of 3.5m³/h, the F73 twin alternating softener configuration is widely used for its ability to carry out service, backwash, brine and slow rinse, brine refill, and a fast rinse through simple parameter modifications.
| Model | F73（17603） |
| Inlet/outlet | 1"M |
| Drain | 1/2"M |
| Brine line connector | 3/8"M |
| Mounting base | 2-1/2"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 3.5m³/h |
| Filter tank | 8"--14" |
| Control type | Meter type |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Ambient temperature | 5-50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | InputAC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Continuous water supply |
