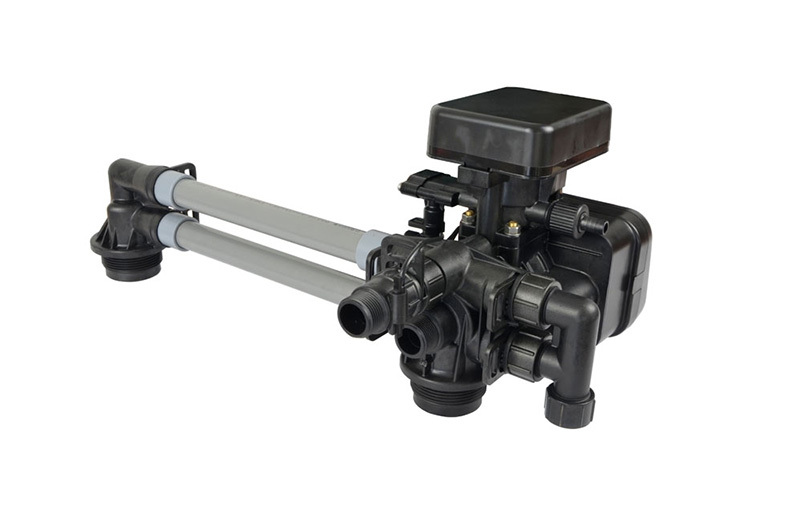

F118 Twin Alternating Softeners Valves

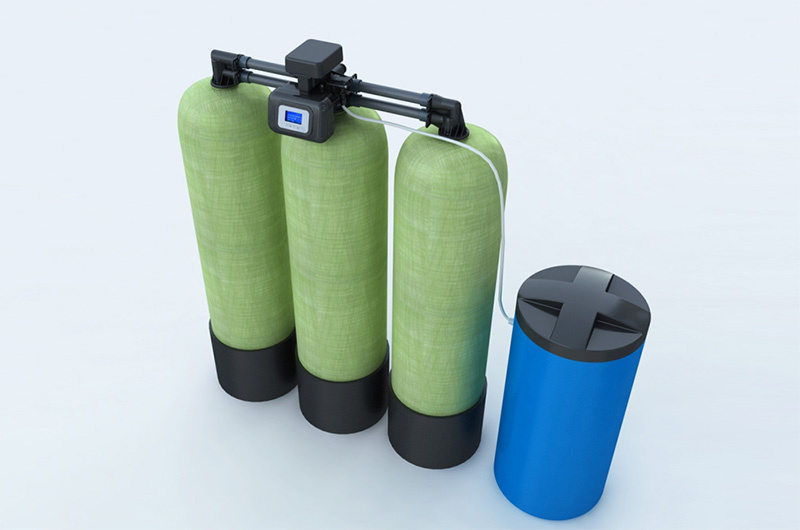

With a flow rate of 4m³/h, the F118 is a valve with three tanks that utilizes a planar and corrosion resistant gasket for opening and closing. Different functions, including service, backwash, brine& slow rinse, brine refill and fast rinse are all achieved through parameter modification.
| Model | Type | Description |
| A-01 | down-flow immediate regeneration | Regeneration will be triggered immediately when output water quantity becomes equal with the set one. |
| A-03 | intelligent down-flow immediate regeneration | The quantity of periodic water production will form automatically imputing resin volume, feed water hardness and regeneration factor. The regeneration mode is the same with that of A-01. |
| A-11 | up-flow immediate regeneration | Regeneration will be triggered immediately when output water quantity becomes equal with the set one. |
| A-13 | intelligent up-flow immediate regeneration | The quantity of periodic water production will form automatically imputing resin volume, feed water hardness and regeneration factor. The regeneration mode is the same with that of A-01. |
| Model | F118A/B |
| Inlet/outlet | G1 |
| Drain | NPT 3/4" |
| Brine line connector | G 3/8" |
| Mounting base | 3x2.5"-8NPSM |
| Riser pipe | 3x1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 10"--18" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | Down-flow regeneration＜5FTU Up-flow regeneration＜2FTU |
| Ambient temperature | 5-50℃ |
| Relative humidity | ≤95%（25℃） |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/2A |
