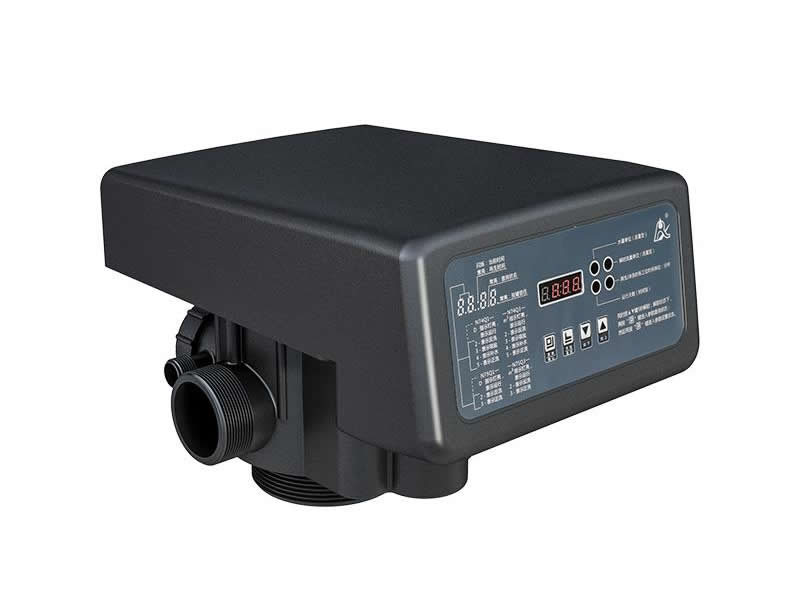

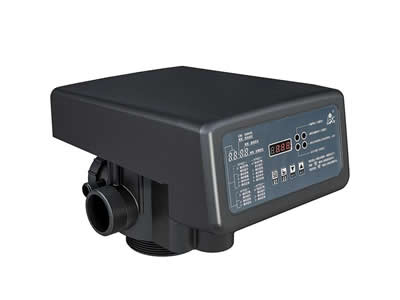

N74Q Automatic Softener Valves
N74Q automatic softener valve can handle flow rate of 10m³/h. When automatic valve control receives signal of set data (flow or time), it can automatically realize the functions of service, backwash, slow rinse, brine refill and fast rinse. The valve body is made of 10% glass fiber reinforced ABS material, featuring high impact strength, heat resistance and flame retardancy.
- Display screen is more concise and succinct, easy to operate;
- Optimized structure, more cost-effective;
| Model | N74Q1/Q3(65510/65610) |
| Regeneration | Time clock type / meter type |
| Mount type | Top mount |
| Inlet/outlet | 2″M |
| Drain | 1″M |
| Brine line connector | 1/2″M |
| Mounting base | 4”-8UN |
| Riser pipe | 1.5"D-GB/ 1.9"OD |
| Flow rate | 10m³/h |
| Filter tank | 20″～30″ |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
