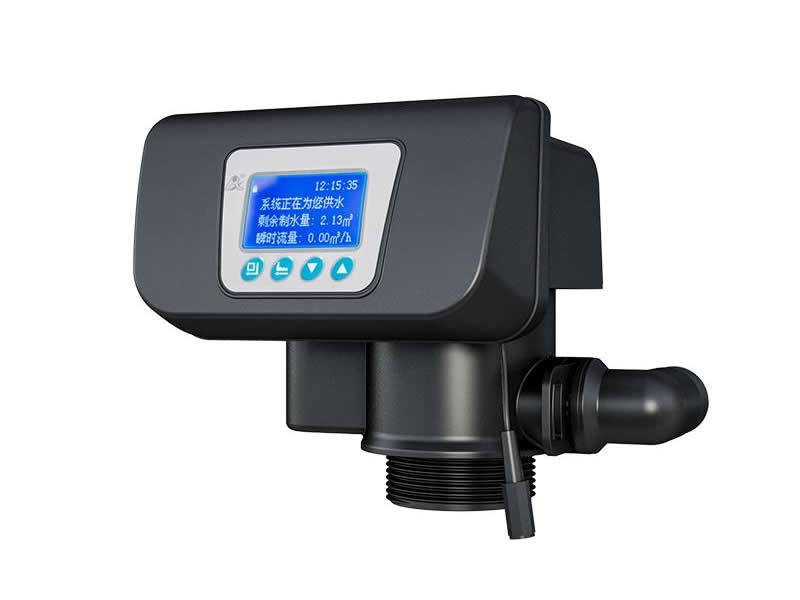

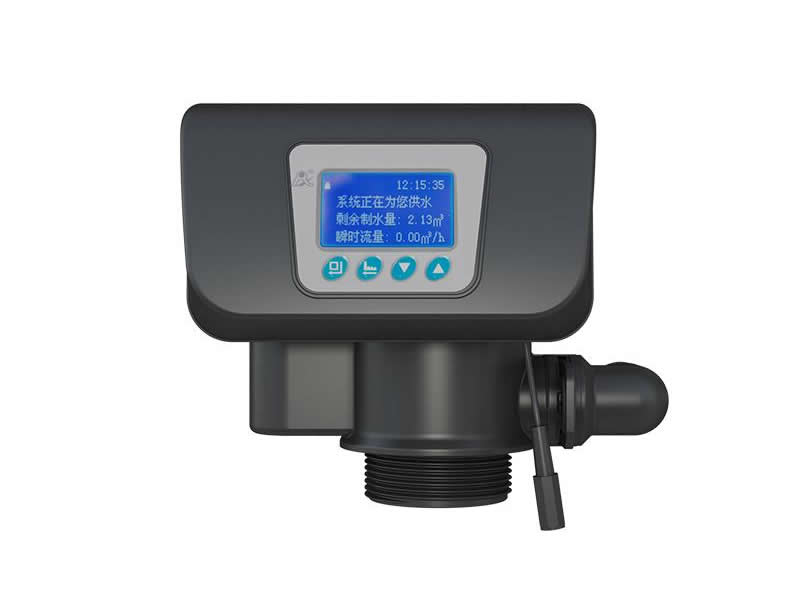

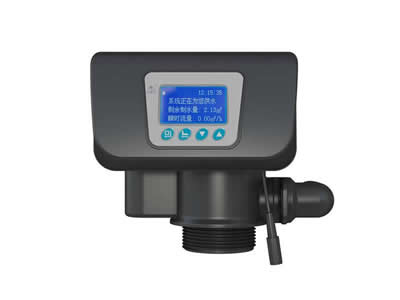

F67K Automatic Filter Valves
F67K automatic filter valve features high flatness and corrosion resistant seal surfaces for closing and opening to provide high sealing effect, and the flow rate can reach 4m³/h. The valve body is constructed utilizing ABS plastic reinforced with 10% glass fiber, thus ensuring high impact resistance.
- Inlet and outlet are located at the rear side, easy for pipe connection;
- Multi-lingual LCD display, operating status is clearly shown by text;
- All data will be automatically saved and prompt is actuated in the event of power-off;
- Repeated flushing is settable;
| Model | F67K1（52504E） |
| Mount type | Top mount |
| Inlet/outlet | 1" M |
| Drain | 1" M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 4m³/h |
| Filter tank | 6"--16" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC12V/1.5A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
