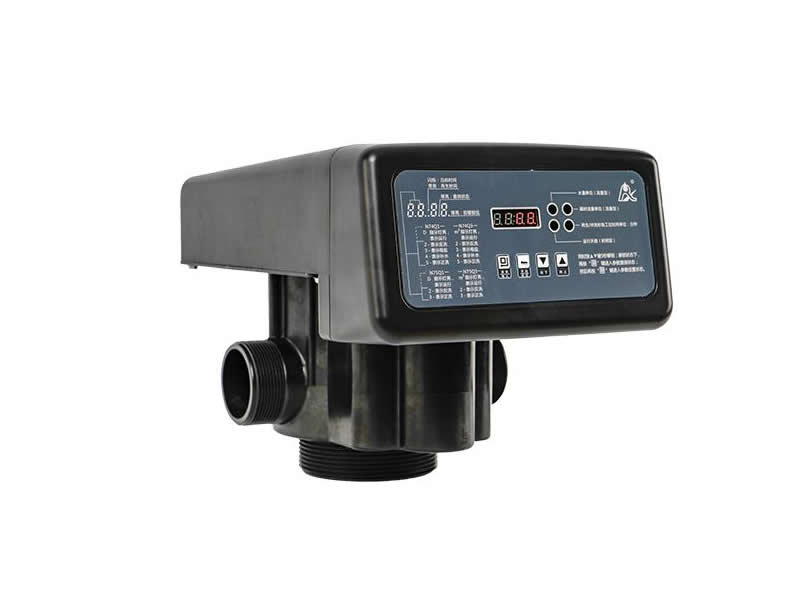

N75Q Automatic Filter Valves
N75Q automatic filter valves feature a flow rate of 10m³/h, and adopt high flatness and corrosion resistant seal surfaces for closing and opening to ensure high sealing performance. The valve body is made of 10% glass fiber reinforced ABS material, enabling the filter valve to be featured by high impact resistance, chemical stability and excellent electrical properties. The control panel is integrated with display, more concise and succinct.
| Model | N75Q1/Q3(55510/55610) |
| Mount type | Top mount |
| Inlet/outlet | 2″M |
| Drain | 2″M |
| Mounting base | 4”-8UN |
| Riser pipe | 1.5"D-GB/ 1.9"OD |
| Flow rate | 10m³/h |
| Filter tank | 16″～24″ |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/1.5A |
