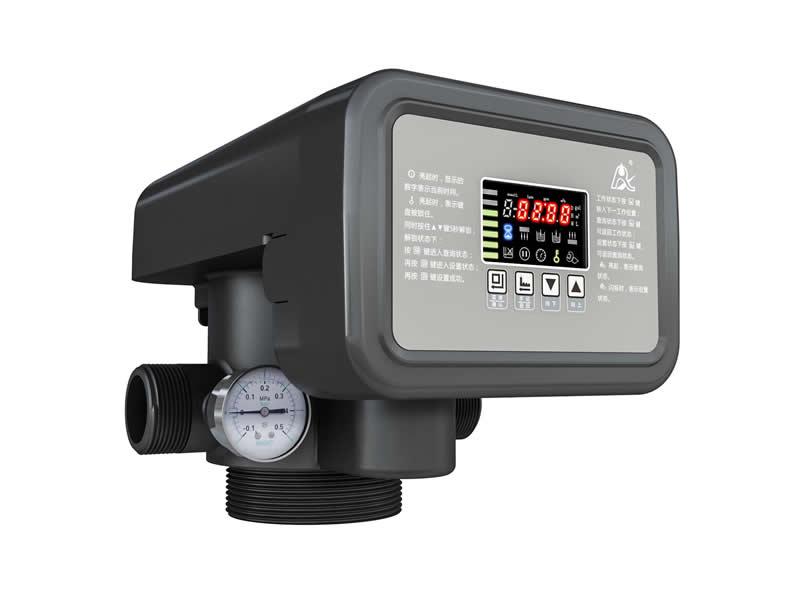

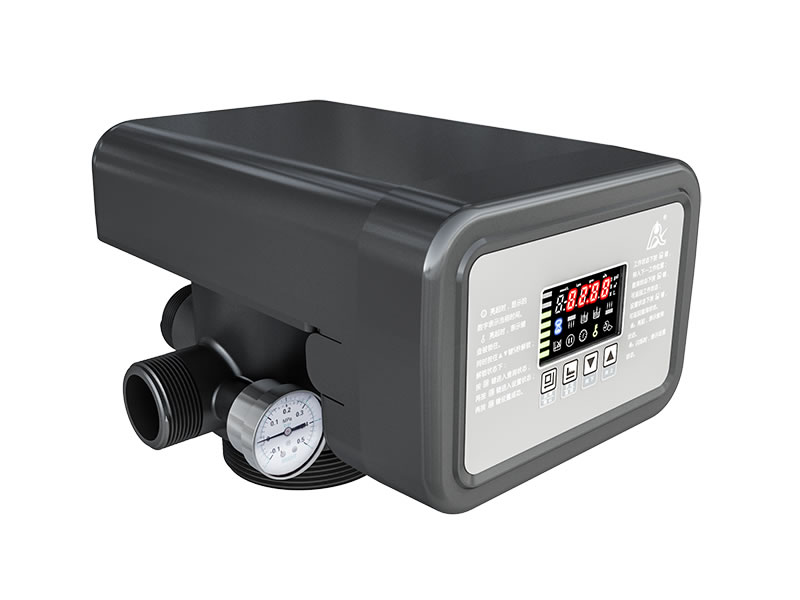

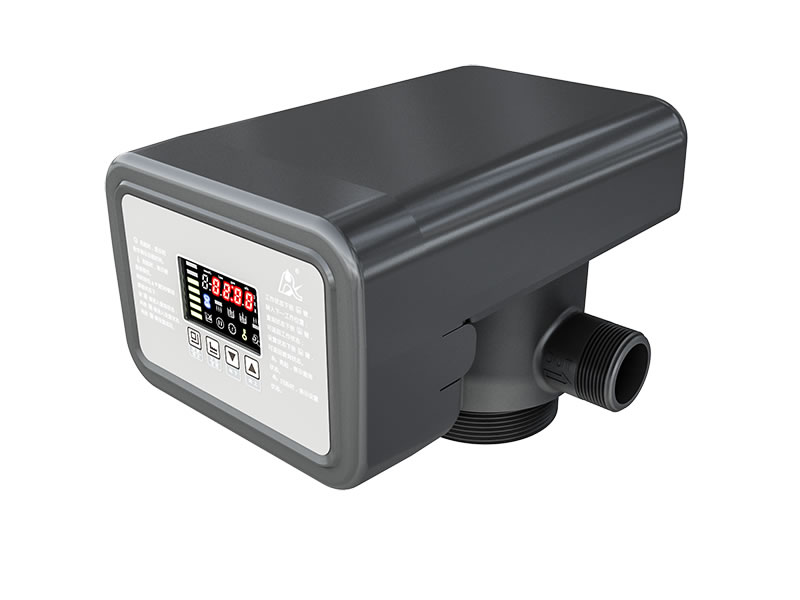

F134A1 Automatic Multiport Filter Valves
F134A automatic multiport filter valve operates with a flow rate of 8m³/h and features a corrosion resistant gasket for opening and closing. Service, backwash, and fast rinse functions can be realized through parameter modification of the valve. The F134A1 is a timer clock type while the F134A3 is a meter type.
| Model | F134A1（53508）/ F134A3(53608) |
| Mount type | Top mount |
| Inlet/outlet | 1.5" M |
| Drain | 1.5" M |
| Mounting base | 4"-8UN |
| Riser pipe | 1.25"D-GB/1.66"OD |
| Flow rate | 8m³/h |
| Filter tank | 20"--30" |
| Water pressure | 0.15-0.6MPa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜5FTU |
| Power adapter | Input AC100~240V/50~60HZ Output DC24V/1.5A |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon.. |
