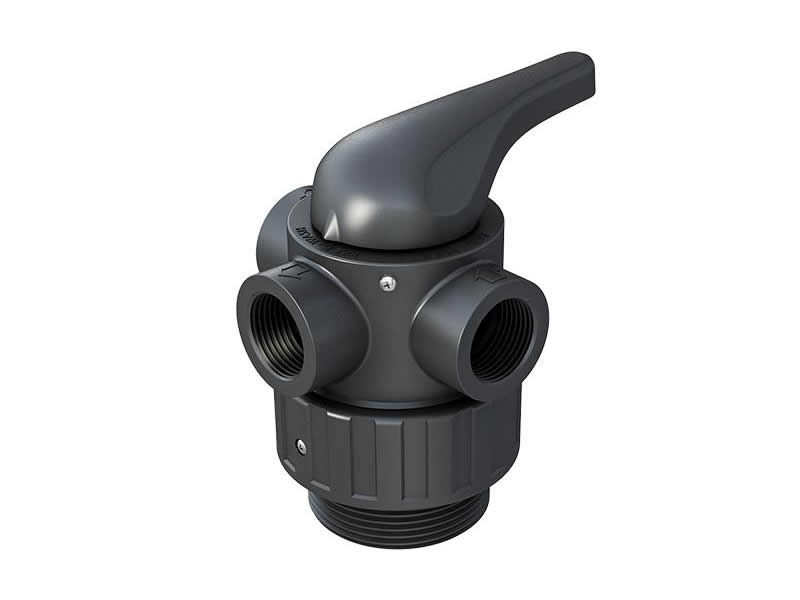

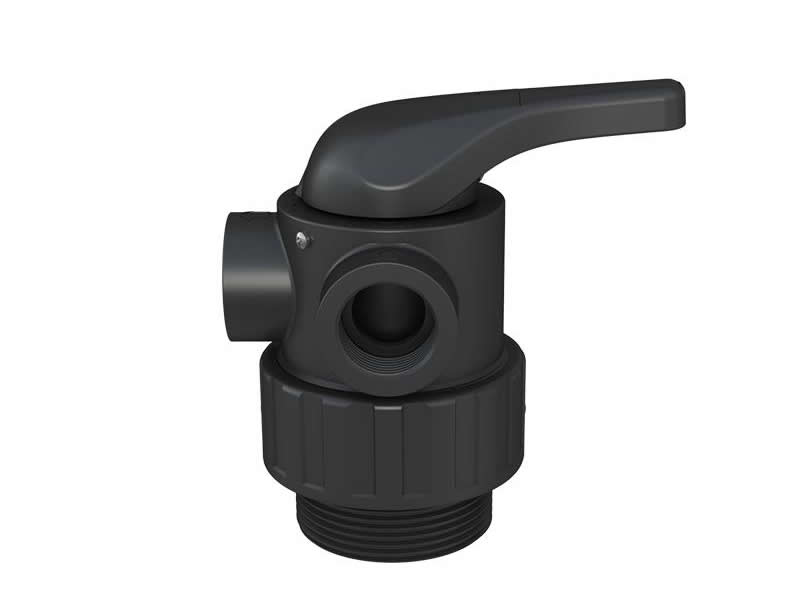

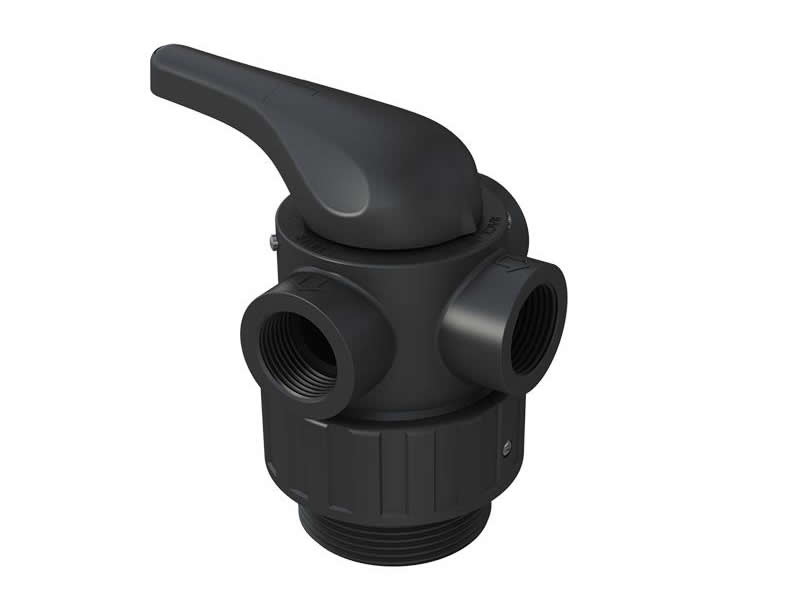

F56M Manual Filter Valves
The F56M manual filter valve offers a flow rate of 5m³/h and adopts corrosion resistant seal surfaces for opening and closing. This manual filter valve is operated by hand wheel to realize service, rinse and backwash.
| Model | F56M |
| Handle material | plastic |
| Mount type | Top mount |
| Inlet/outlet | 1"M |
| Drain | 1"M |
| Mounting base | 2.5"-8NPSM |
| Riser pipe | 1.05"OD |
| Flow rate | 5m³/h |
| Filter tank | 10"--24" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
