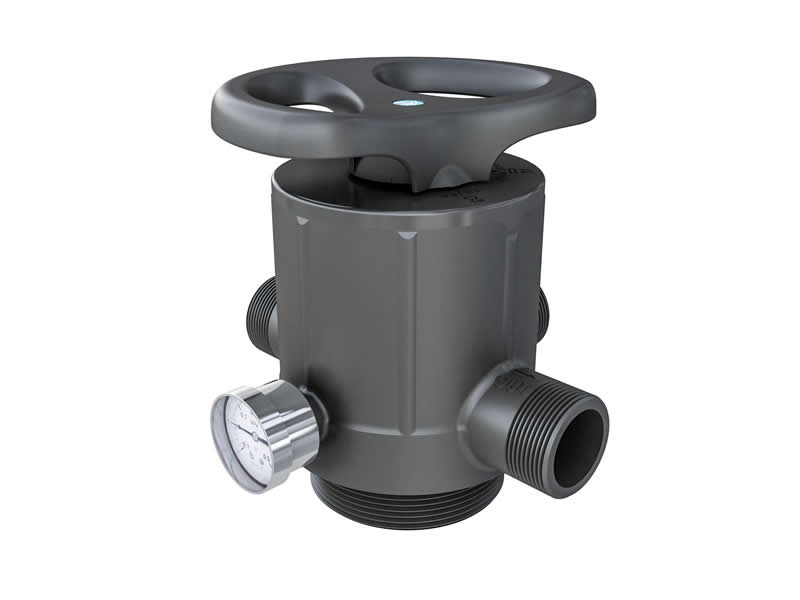

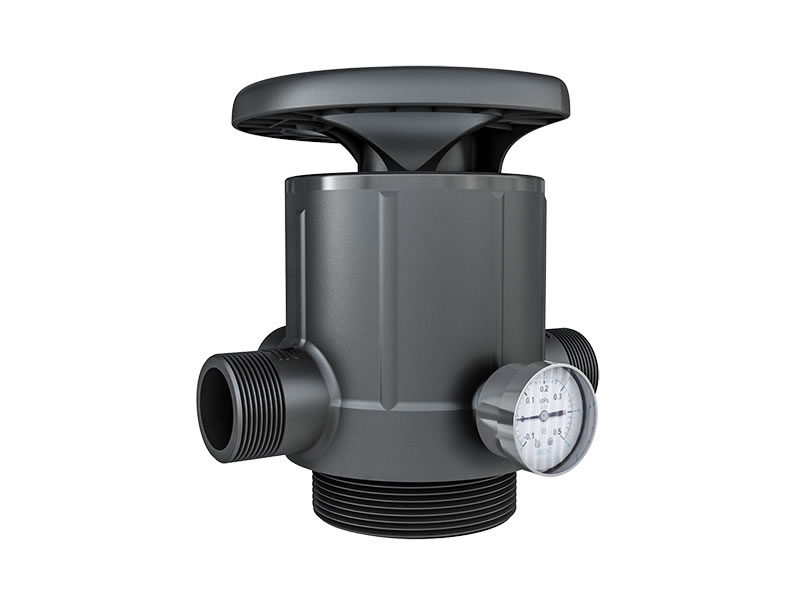

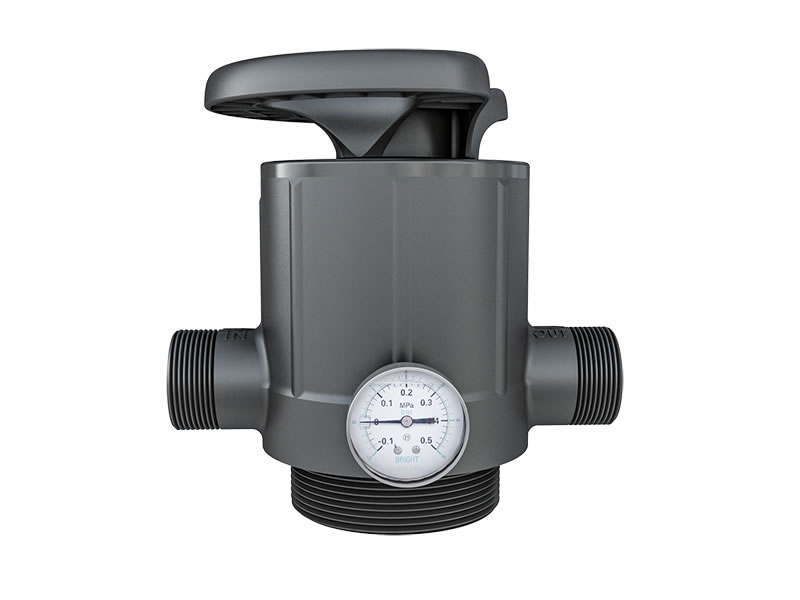

F56L Manual Multiport Filter Valve
The F56L manual multiport filter valve provides a flow rate of 8m³/h and adopts a corrosion resistant gasket for opening and closing. It can be applied as a service, backwash, or fast rinse valve. With a rotating handwheel, you can easily switch the settings without turning off the pump.
| Model | F56L（51208） |
| Handle material | plastic |
| Mount type | Top mount |
| Inlet/outlet | 1.5"M |
| Drain | 1.5"M |
| Mounting base | 4"-8UN |
| Riser pipe | 1.25"D-GB/1.66"OD |
| Flow rate | 8m³/h |
| Filter tank | 14"--24" |
| Water pressure | 0.15-0.6Mpa |
| Water temperature | 5-50℃ |
| Water turbidity | ＜20FTU |
| Application | Activated carbon filter, sand filter |
| Filter media | Quartz sand, activated carbon |
